| Application: | Usinage de profils et contreprofils de cadres de portes en bois massif dans l'industrie du meuble. |
|---|---|
| Machine: | Défonceuses avec ou sans commandes CNC. Machines spéciales avec interfaces pouvant recevoir des outils à queue. |
| Matériaux: | Bois tendres et durs. |
| Informations techniques: | 3 jeux d'outils avec 5 variantes de profils pour cadre de porte profilés d'un côté ainsi que pour panneaux de remplissage. Variantes de profil complémentaires par remplacement des outils unitaires. |
| Id |
Type d'outil |
N° d'outil |
Z |
nmax min-1 |
Stock |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
426219

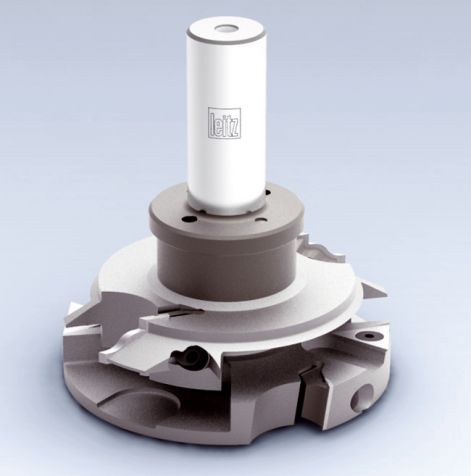

Jeu de porte-outils profil ProfilCut Q
MC,D109.1,d20,Z2,2 |
Type d'outil:
Jeu de profilage en long
|
N° d'outil:
1/5
|
Z:
2/2
|
nmax:
15700
min-1
|
Stock:
Stock:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
426220
Jeu de porte-outils profil ProfilCut Q
MC,D109,d20,Z2,2 |
Type d'outil:
Jeu de contreprofilage
|
N° d'outil:
2/5
|
Z:
2/2
|
nmax:
15700
min-1
|
Stock:
Stock:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
426221
Jeu de porte-outils profil ProfilCut Q
MC/RE/4-TLG. |
Type d'outil:
Jeux d'outils complet profil-contreprofil monté sur arbre porte-fraises.
|
N° d'outil:
|
Z:
|
nmax:
min-1
|
Stock:
Stock:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Arbre porte-fraises, voir chapitre interfaces.
Sans indication spécifique, l'outil est livré avec profil 1.
| Id | BEZ | ABM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
619357
Couteau ProfilCut Q
MC:30x23,2x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:30x23,2x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619358
Couteau ProfilCut Q
MC:30x23,2x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:30x23,2x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619359
Couteau ProfilCut Q
MC:30x23,2x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:30x23,2x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619360
Couteau ProfilCut Q
MC:30x23,2x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:30x23,2x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619361
Couteau ProfilCut Q
MC:30x23,2x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:30x23,2x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619362
Couteau ProfilCut Q
MC:20x23x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:20x23x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619363
Couteau ProfilCut Q
MC:20x23x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:20x23x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619364
Couteau ProfilCut Q
MC:20x23x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:20x23x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619365
Couteau ProfilCut Q
MC:20x23x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:20x23x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619366
Couteau ProfilCut Q
MC:20x23x2 |
BEZ: Couteau ProfilCut Q | ABM: MC:20x23x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
5115
Araseur réversible VS2
HW-F:19x19x2 |
BEZ: Araseur réversible VS2 | ABM: HW-F:19x19x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
601603
Plaquette réversible Marathon
MC:14,7x8x1,5 |
BEZ: Plaquette réversible Marathon | ABM: MC:14,7x8x1,5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Id | BEZ | ABM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
630170
Coin de serrage profilé
27x29x8,27 |
BEZ: Coin de serrage profilé | ABM: 27x29x8,27 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
630171
Coin de serrage profilé
17x29x8,27 |
BEZ: Coin de serrage profilé | ABM: 17x29x8,27 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
7446
Vis de serrage avec rondelle Torx®20
M5x18,5 |
BEZ: Vis de serrage avec rondelle Torx®20 | ABM: M5x18,5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
117503
Tournevis Torx®
Torx® 20 |
BEZ: Tournevis Torx® | ABM: Torx® 20 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
7808
Vis à tête fraisée Torx® 20
M5x8,5 |
BEZ: Vis à tête fraisée Torx® 20 | ABM: M5x8,5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
630203
Coin de serrage
13x18.75x8.27 |
BEZ: Coin de serrage | ABM: 13x18.75x8.27 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
5376
Cale de réglage magnétique
95x34x6 |
BEZ: Cale de réglage magnétique | ABM: 95x34x6 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
