| Application: | Usinage de profils et contreprofils de cadres de portes en bois massif dans l'industrie du meuble. |
|---|---|
| Machine: | Défonceuses avec ou sans commandes CNC. Machines spéciales avec interfaces pouvant recevoir des outils à queue. |
| Matériaux: | Bois tendres et durs. |
| Informations techniques: | Jeux d'outils avec 5 variantes de profils pour cadres de portes profilés des 2 côtés pour panneaux plate-bandes . Outils complémentaires pour profilage 1 côté. |
| Id |
Type d'outil |
N° d'outil |
Z |
V |
nmax min-1 |
Stock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
426222

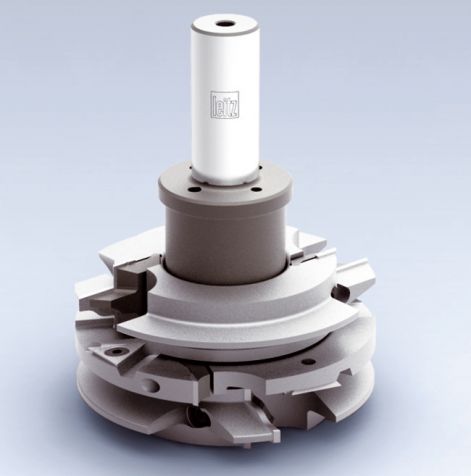

Jeu de porte-outils profil ProfilCut Q
MC,D115.2,d20,Z2,2 |
Type d'outil:
Jeu de profilage en long
|
N° d'outil:
1/2/3
|
Z:
2
|
V:
2
|
nmax:
14900
min-1
|
Stock:
Stock:
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
426223
Jeu de porte-outils profil ProfilCut Q
MC,D115,d20,Z2,2 |
Type d'outil:
Jeu de contreprofilage
|
N° d'outil:
1/3
|
Z:
2
|
V:
|
nmax:
14900
min-1
|
Stock:
Stock:
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
426224
Jeu de porte-outils profil ProfilCut Q
MC/RE/5-TLG. |
Type d'outil:
Jeux d'outils complet profil-contreprofil monté sur arbre porte-fraises.
|
N° d'outil:
|
Z:
|
V:
|
nmax:
min-1
|
Stock:
Stock:
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Arbre porte-fraises, voir chapitre interfaces.
Epaisseur de bois:
Cadre double doucine HD 36 - 41 mm
Cadre simple doucine HD 20 - 49 mm
| Id | BEZ | ABM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
619291
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619292
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619293
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619294
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619295
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619296
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619297
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619298
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619299
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619300
Couteau ProfilCut Q
25x27x2 |
BEZ: Couteau ProfilCut Q | ABM: 25x27x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
5115
Araseur réversible VS2
HW-F:19x19x2 |
BEZ: Araseur réversible VS2 | ABM: HW-F:19x19x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
601601
Plaquette réversible Marathon
MC:9,7x8x1,5 |
BEZ: Plaquette réversible Marathon | ABM: MC:9,7x8x1,5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
601607
Plaquette réversible Marathon
MC:35x8x1,5 |
BEZ: Plaquette réversible Marathon | ABM: MC:35x8x1,5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
601606
Plaquette réversible Marathon
MC:30x8x1,5 |
BEZ: Plaquette réversible Marathon | ABM: MC:30x8x1,5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Id | BEZ | ABM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
630172
Coin de serrage profilé
22x30x8,27 |
BEZ: Coin de serrage profilé | ABM: 22x30x8,27 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
630173
Coin de serrage profilé
22x30x8,27 |
BEZ: Coin de serrage profilé | ABM: 22x30x8,27 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
7446
Vis de serrage avec rondelle Torx®20
M5x18,5 |
BEZ: Vis de serrage avec rondelle Torx®20 | ABM: M5x18,5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
117503
Tournevis Torx®
Torx® 20 |
BEZ: Tournevis Torx® | ABM: Torx® 20 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
6243
Vis à tête fraisée Torx® 20
M6x0,5x4,9 |
BEZ: Vis à tête fraisée Torx® 20 | ABM: M6x0,5x4,9 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
9764
Coin de serrage
9x18.75x8.27 |
BEZ: Coin de serrage | ABM: 9x18.75x8.27 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
630206
Coin de serrage
28x18,75x8,27 |
BEZ: Coin de serrage | ABM: 28x18,75x8,27 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
630208
Coin de serrage
33x18.75x8.27 |
BEZ: Coin de serrage | ABM: 33x18.75x8.27 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
7380
Vis à téton, Torx® 15
M5x20 |
BEZ: Vis à téton, Torx® 15 | ABM: M5x20 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
117507
Tournevis Torx®
Torx® 15 |
BEZ: Tournevis Torx® | ABM: Torx® 15 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
5376
Cale de réglage magnétique
95x34x6 |
BEZ: Cale de réglage magnétique | ABM: 95x34x6 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
