Poly-cristalline diamond (PKD)
Scoring, sawing

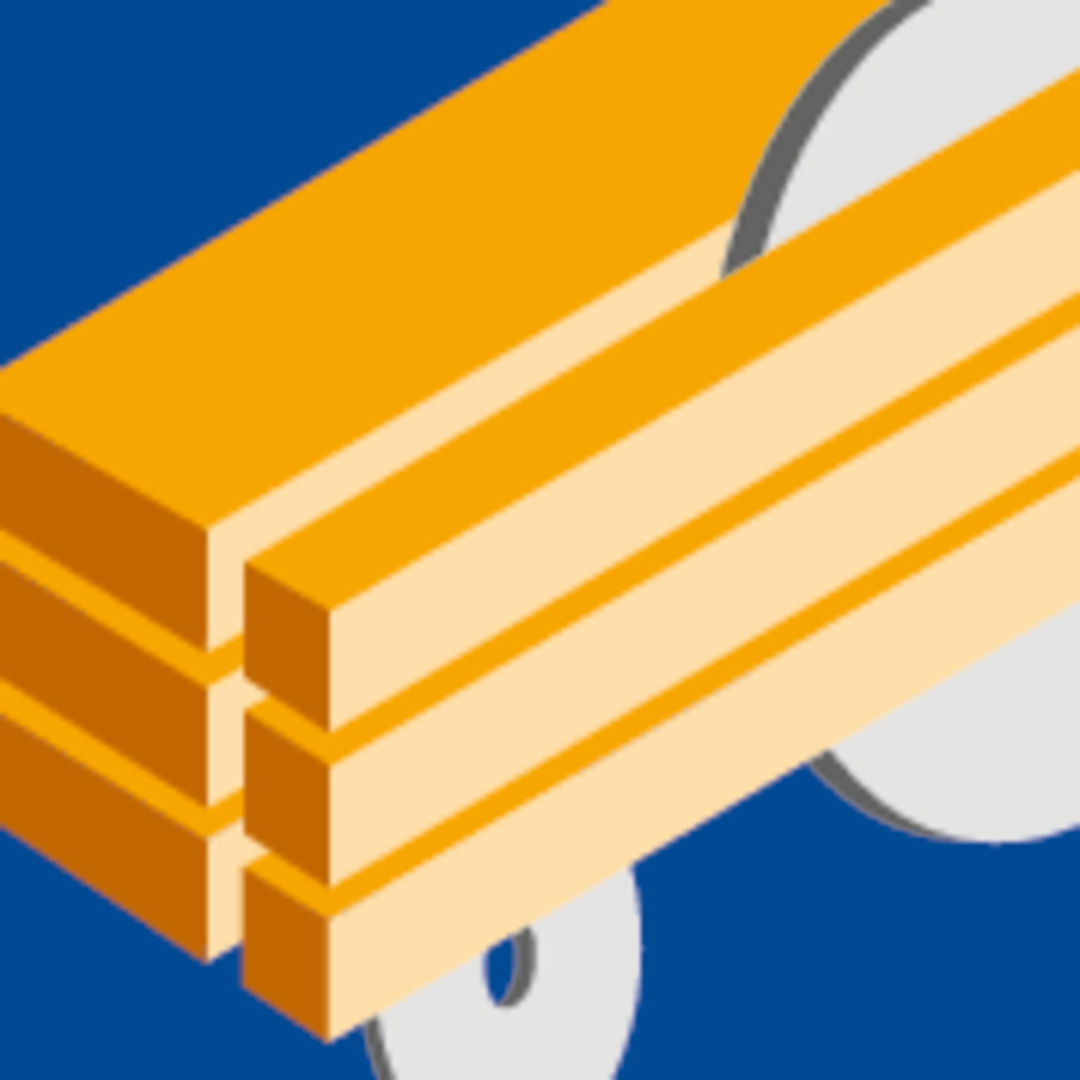

Scoring and sawing stacks
Tipped tool
Information
| Application: | For panel sizing of single boards and stacks of boards with scoring. |
|---|---|
| Machine: | Panel sizing saws with scoring unit and pressure beam. |
| Workpiece material: | Chipboard and fibre materials plastic coated, duroplastics (compact laminate panels, e.g. HPL), fibre reinforced materials (e.g. GFRP, CFRP). |
| Technical information: | DP equipment for long tool life. Excellent version with irregular tooth pitch and filled laser ornaments for vibration damping and reduction of noise level. Coating of the tool body for higher running performance. Mounting height 6 mm for multiple resharpening. |
Downloads
User Manual
Product information
Tool selection
| Id |
Machine |
D mm |
SB mm |
TDI mm |
BO mm |
NLA mm |
Z |
ZF |
SW ° |
Stock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
190706

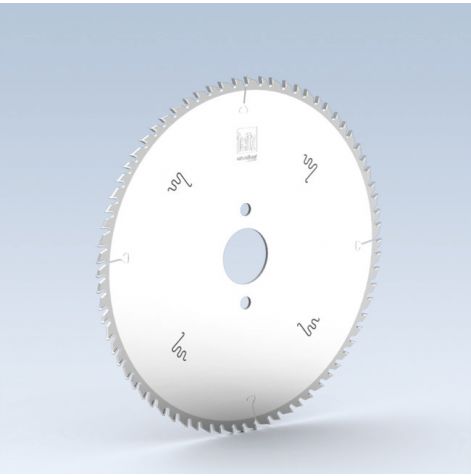

Panel sizing sawblade
DP:300x4.4x30,Z60,TR/TR |
Machine:
|
D:
300
mm
|
SB:
4.4
mm
|
TDI:
3,2
mm
|
BO:
30
mm
|
NLA:
KNL
mm
|
Z:
60
|
ZF:
TR/TR
|
SW:
15
°
|
Stock:
1
Stock:
available from stock
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
190746
Panel sizing sawblade Excellent
DP:308x3.2x60,Z96,TR/TR |
Machine:
Homag
|
D:
308
mm
|
SB:
3.2
mm
|
TDI:
2,4
mm
|
BO:
60
mm
|
NLA:
2/14/100
mm
|
Z:
96
|
ZF:
TR/TR
|
SW:
10
°
|
Stock:
1
Stock:
available from stock
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
190707
Panel sizing sawblade
DP:350x4.4x30,Z72,TR/TR |
Machine:
Holz-Her, Mayer, Schelling
|
D:
350
mm
|
SB:
4.4
mm
|
TDI:
3,2
mm
|
BO:
30
mm
|
NLA:
KNL
2/13/94 mm |
Z:
72
|
ZF:
TR/TR
|
SW:
15
°
|
Stock:
1
Stock:
available from stock
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
190708
Panel sizing sawblade
DP:350x4.4x60,Z72,TR/TR |
Machine:
Homag
|
D:
350
mm
|
SB:
4.4
mm
|
TDI:
3,2
mm
|
BO:
60
mm
|
NLA:
2/14/100 2/14/125
mm
|
Z:
72
|
ZF:
TR/TR
|
SW:
15
°
|
Stock:
1
Stock:
available from stock
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
190709
Panel sizing sawblade
DP:380x4.4x60,Z72,TR/TR |
Machine:
Homag
|
D:
380
mm
|
SB:
4.4
mm
|
TDI:
3,2
mm
|
BO:
60
mm
|
NLA:
2/14/100 2/14/125
mm
|
Z:
72
|
ZF:
TR/TR
|
SW:
15
°
|
Stock:
1
Stock:
available from stock
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
190710
Panel sizing sawblade
DP:380x4.8x60,Z72,TR/TR |
Machine:
Homag
|
D:
380
mm
|
SB:
4.8
mm
|
TDI:
3,5
mm
|
BO:
60
mm
|
NLA:
2/14/100 2/14/125
mm
|
Z:
72
|
ZF:
TR/TR
|
SW:
15
°
|
Stock:
1
Stock:
available from stock
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
190711
Panel sizing sawblade
DP:400x4.4x30,Z72,TR/TR |
Machine:
Mayer, Schelling
|
D:
400
mm
|
SB:
4.4
mm
|
TDI:
3,2
mm
|
BO:
30
mm
|
NLA:
KNL
2/13/94 mm |
Z:
72
|
ZF:
TR/TR
|
SW:
15
°
|
Stock:
1
Stock:
available from stock
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
190712
Panel sizing sawblade
DP:450x4.8x60,Z72,TR/TR |
Machine:
Homag
|
D:
450
mm
|
SB:
4.8
mm
|
TDI:
3,5
mm
|
BO:
60
mm
|
NLA:
2/14/125 2/19/120
mm
|
Z:
72
|
ZF:
TR/TR
|
SW:
15
°
|
Stock:
1
Stock:
available from stock
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
190706 Panel sizing sawblade
DP:300x4.4x30,Z60,TR/TRMachine:D: 300 mmSB: 4.4 mmTDI: 3,2 mmBO: 30 mmNLA: KNL mmZ: 60ZF: TR/TRSW: 15 °Stock: available from stockStock: 1Request Price -
190746 Panel sizing sawblade Excellent
DP:308x3.2x60,Z96,TR/TRMachine: HomagD: 308 mmSB: 3.2 mmTDI: 2,4 mmBO: 60 mmNLA: 2/14/100 mmZ: 96ZF: TR/TRSW: 10 °Stock: available from stockStock: 1Request Price -
190707 Panel sizing sawblade
DP:350x4.4x30,Z72,TR/TRMachine: Holz-Her, Mayer, SchellingD: 350 mmSB: 4.4 mmTDI: 3,2 mmBO: 30 mmNLA: KNL
2/13/94 mmZ: 72ZF: TR/TRSW: 15 °Stock: available from stockStock: 1Request Price -
190708 Panel sizing sawblade
DP:350x4.4x60,Z72,TR/TRMachine: HomagD: 350 mmSB: 4.4 mmTDI: 3,2 mmBO: 60 mmNLA: 2/14/100 2/14/125 mmZ: 72ZF: TR/TRSW: 15 °Stock: available from stockStock: 1Request Price -
190709 Panel sizing sawblade
DP:380x4.4x60,Z72,TR/TRMachine: HomagD: 380 mmSB: 4.4 mmTDI: 3,2 mmBO: 60 mmNLA: 2/14/100 2/14/125 mmZ: 72ZF: TR/TRSW: 15 °Stock: available from stockStock: 1Request Price -
190710 Panel sizing sawblade
DP:380x4.8x60,Z72,TR/TRMachine: HomagD: 380 mmSB: 4.8 mmTDI: 3,5 mmBO: 60 mmNLA: 2/14/100 2/14/125 mmZ: 72ZF: TR/TRSW: 15 °Stock: available from stockStock: 1Request Price -
190711 Panel sizing sawblade
DP:400x4.4x30,Z72,TR/TRMachine: Mayer, SchellingD: 400 mmSB: 4.4 mmTDI: 3,2 mmBO: 30 mmNLA: KNL
2/13/94 mmZ: 72ZF: TR/TRSW: 15 °Stock: available from stockStock: 1Request Price -
190712 Panel sizing sawblade
DP:450x4.8x60,Z72,TR/TRMachine: HomagD: 450 mmSB: 4.8 mmTDI: 3,5 mmBO: 60 mmNLA: 2/14/125 2/19/120 mmZ: 72ZF: TR/TRSW: 15 °Stock: available from stockStock: 1Request Price
Explanation of abbreviations
Machine
Make of machine
D
Diameter
SB
Cutting width
TDI
Thickness of tool
BO
Bore diameter / interface
NLA
Pinhole dimensions
Z
Number of teeth
ZF
Tooth shape
SW
Cutting angle
Stock
Stock availability
