Poly-cristalline diamond (PKD)
Jointing
Mechanical feed
Light alloy body
Low noise
Optimised chip flow
Resharpenable clearance face
Information
| Application: | For tear-free and noise reduced jointing of workpiece cutting surfaces with and against feed (jump cutting) particularly for sensitive decorative papers, foil coatings and veneers. |
|---|---|
| Machine: | Edgebanding machines, copy shaping machines, double-end tenoners etc. |
| Workpiece material: | Chip and fibre boards (MDF etc.) raw, veneered, painted and coated; especially for plastic, paper, HPL and anti-fingerprint coatings. Also suitable for surfaces in mat, high gloss or with relief structures. |

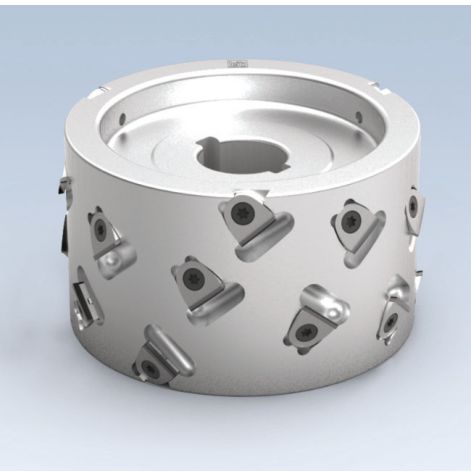

| Technical information: | DP tipped cutterhead with alternate shear angle for tear-free jointing edges and cutting surface. Increased shear angle for excellent edge quality on sensitive decorative papers, foil coatings and veneers. Tool with knife arrangement S can be used lefthand and righthand and produces a hollow cut for tightly fitting edgebanding. Noise reduced design with up to 5 dB(A) noise reduction and highly efficient chip collection (>95%) through DFC. Significant weight reduction by using an aluminium alloy tool body. Carrier body for multiple use with exchangeable knives. 0.6 mm resharpening area. |
Downloads
User Manual
Product information
Tool selection
| Id |
Machine |
D mm |
SB mm |
ND mm |
BO mm |
NAL |
nmax min-1 |
Z |
Type |
DRI |
Stock |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
192249
WhisperCut Pro EdgeExpert
DP, 125x43x30 DKN8x38 Z3 |
Machine:
Biesse, Homag
|
D:
125
mm
|
SB:
43
mm
|
ND:
40
mm
|
BO:
30 DKN
mm
|
NAL:
365
|
nmax:
13700
min-1
|
Z:
3x6
|
Type:
S
|
DRI:
LH, RH
|
Stock:
1
Stock:
available from stock
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
192250
WhisperCut Pro EdgeExpert
DP, 125x63x30 DKN8x38 Z3 |
Machine:
Biesse
|
D:
125
mm
|
SB:
63
mm
|
ND:
40
mm
|
BO:
30 DKN
mm
|
NAL:
365
|
nmax:
13700
min-1
|
Z:
3x8
|
Type:
S
|
DRI:
LH, RH
|
Stock:
1
Stock:
available from stock
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
192251
WhisperCut Pro EdgeExpert
DP, 125x43x30 DKN8x38 Z3 |
Machine:
IMA
|
D:
125
mm
|
SB:
43
mm
|
ND:
40
mm
|
BO:
30 DKN
mm
|
NAL:
365
|
nmax:
13700
min-1
|
Z:
3x6
|
Type:
AS
|
DRI:
LH
|
Stock:
1
Stock:
available from stock
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
192252
WhisperCut Pro EdgeExpert
DP, 125x43x30 DKN8x38 Z3 |
Machine:
IMA
|
D:
125
mm
|
SB:
43
mm
|
ND:
40
mm
|
BO:
30 DKN
mm
|
NAL:
365
|
nmax:
13700
min-1
|
Z:
3x6
|
Type:
AS
|
DRI:
RH
|
Stock:
1
Stock:
available from stock
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
192301
WhisperCut Pro EdgeExpert
DP, 125x63x30 DKN8x38 Z3 |
Machine:
IMA
|
D:
125
mm
|
SB:
63
mm
|
ND:
40
mm
|
BO:
30 DKN
mm
|
NAL:
366
|
nmax:
13700
min-1
|
Z:
3x8
|
Type:
AS
|
DRI:
LH
|
Stock:
1
Stock:
available from stock
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
192302
WhisperCut Pro EdgeExpert
DP, 125x63x30 DKN8x38 Z3 |
Machine:
IMA
|
D:
125
mm
|
SB:
63
mm
|
ND:
40
mm
|
BO:
30 DKN
mm
|
NAL:
366
|
nmax:
13700
min-1
|
Z:
3x8
|
Type:
AS
|
DRI:
RH
|
Stock:
1
Stock:
available from stock
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
192249 WhisperCut Pro EdgeExpert
DP, 125x43x30 DKN8x38 Z3Machine: Biesse, HomagD: 125 mmSB: 43 mmND: 40 mmBO: 30 DKN mmNAL: 365nmax: 13700 min-1Z: 3x6Type: SDRI: LH, RHStock: available from stockStock: 1Request Price -
192250 WhisperCut Pro EdgeExpert
DP, 125x63x30 DKN8x38 Z3Machine: BiesseD: 125 mmSB: 63 mmND: 40 mmBO: 30 DKN mmNAL: 365nmax: 13700 min-1Z: 3x8Type: SDRI: LH, RHStock: available from stockStock: 1Request Price -
192251 WhisperCut Pro EdgeExpert
DP, 125x43x30 DKN8x38 Z3Machine: IMAD: 125 mmSB: 43 mmND: 40 mmBO: 30 DKN mmNAL: 365nmax: 13700 min-1Z: 3x6Type: ASDRI: LHStock: available from stockStock: 1Request Price -
192252 WhisperCut Pro EdgeExpert
DP, 125x43x30 DKN8x38 Z3Machine: IMAD: 125 mmSB: 43 mmND: 40 mmBO: 30 DKN mmNAL: 365nmax: 13700 min-1Z: 3x6Type: ASDRI: RHStock: available from stockStock: 1Request Price -
192301 WhisperCut Pro EdgeExpert
DP, 125x63x30 DKN8x38 Z3Machine: IMAD: 125 mmSB: 63 mmND: 40 mmBO: 30 DKN mmNAL: 366nmax: 13700 min-1Z: 3x8Type: ASDRI: LHStock: available from stockStock: 1Request Price -
192302 WhisperCut Pro EdgeExpert
DP, 125x63x30 DKN8x38 Z3Machine: IMAD: 125 mmSB: 63 mmND: 40 mmBO: 30 DKN mmNAL: 366nmax: 13700 min-1Z: 3x8Type: ASDRI: RHStock: available from stockStock: 1Request Price
Explanation of abbreviations
Machine
Make of machine
D
Diameter
SB
Cutting width
ND
Thickness of hub
BO
Bore diameter / interface
NAL
Position of hub
nmax
Maximum RPM
Z
Number of teeth
Type
Type
DRI
Rotation
Stock
Stock availability
