| Application: | Tool adaptor with flange for the adaption of circular sawblades. |
|---|---|
| Technical information: | Steep taper design for Flex 5+ aggregate (Homag Group) and 5-motion-Plus aggregate (Felder Format-4). The circular sawblade is fixed through 8 countersink screws M5 on the flange. Maximum sawblade diameter 220 mm (limitation through the aggregate). The maximum cutting width of sawblade is limited to 6 mm. Tool adaptor is fine balanced. |
Tool selection
| Id |
Machine |
d mm |
l mm |
NL mm |
A mm |
GL mm |
DB mm |
TK mm |
Weight kg |
Stock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
663074

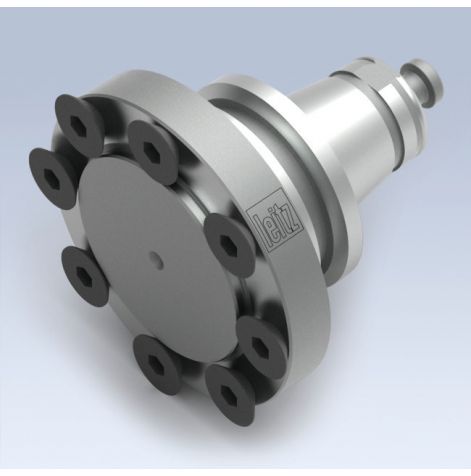

Sawblade adaptor with steep taper
d40/l2.5/A23.5/D60/GL63.5 |
Machine:
Felder Format-4, Homag Group
|
d:
40
mm
|
l:
2.5
mm
|
NL:
2.5
mm
|
A:
23.5
mm
|
GL:
62.5
mm
|
DB:
40
mm
|
TK:
52
mm
|
Weight:
0.4
kg
|
Stock:
1
Stock:
available from stock
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
663074 Sawblade adaptor with steep taper
d40/l2.5/A23.5/D60/GL63.5Machine: Felder Format-4, Homag Groupd: 40 mml: 2.5 mmNL: 2.5 mmA: 23.5 mmGL: 62.5 mmDB: 40 mmTK: 52 mmWeight: 0.4 kgStock: available from stockStock: 1Request Price
Explanation of abbreviations
Machine
Make of machine
d
Clamping diameter
l
Clamping length
NL
Cutting length
A
Dimension A
GL
Total length
DB
Diameter of shoulder
TK
Reference diameter
Weight
Weight
Stock
Stock availability
Spare parts:
| Id | BEZ | ABM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6247
Countersink screw, Torx® 20
M5x12 |
BEZ: Countersink screw, Torx® 20 | ABM: M5x12 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
117511
Torx® key
Torx® 20 |
BEZ: Torx® key | ABM: Torx® 20 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
6247 Countersink screw, Torx® 20
M5x12BEZ: Countersink screw, Torx® 20ABM: M5x12Request Price -
117511 Torx® key
Torx® 20BEZ: Torx® keyABM: Torx® 20Request Price
