Tool adaptor for circular sawblades, HSK-F 63

to Tool selection

Information

Information
Application:

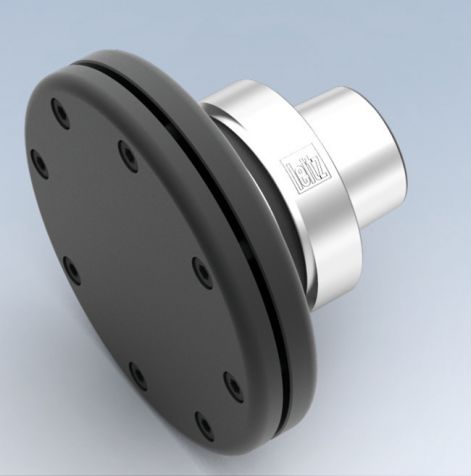

Tool adaptor with flange for the adaption of circular sawblades.

Technical information:

Optionally mounting the sawblade by means of counterscrews or with the enclosed counterflange. Mounting with counterflange is preferred for increased stability and concentricity in case of precision cuts. Application without counterflange is preferred for producing mitre and rafter cuts. Maximum diameter of sawblade 350 mm (450 mm with counter flange).

Tool selection
Id Machine
d
mm
l
mm
NL
mm
A
mm
GL
mm
DB
mm
TK
mm
Weight
kg
Stock
663094 Sawblade flange with HSK-F63
HSK-F63,A40,d30,l2.5,L75.5
Machine: Homag
d: 30 mm
l: 2.5 mm
NL: 2.5 mm
A: 40 mm
GL: 75.5 mm
DB: 63 mm
TK: 90 mm
Weight: 2.0 kg
Stock: 1
Stock: available from stock
663093 Sawblade flange with HSK-F63
HSK-F63,A50,d30,l2.5,L85.5
Machine:
d: 30 mm
l: 2.5 mm
NL: 2.5 mm
A: 50 mm
GL: 85.5 mm
DB: 63 mm
TK: 90 mm
Weight: 2.2 kg
Stock: 1
Stock: available from stock
663109 Sawblade flange with HSK-F63
HSK-F63,A60,d30,l2.5,L95.5
Machine: SCM
d: 30 mm
l: 2.5 mm
NL: 2.5 mm
A: 60 mm
GL: 95.5 mm
DB: 63 mm
TK: 90 mm
Weight: 2.5 kg
Stock: 1
Stock: available from stock
  • 663094 Sawblade flange with HSK-F63
    HSK-F63,A40,d30,l2.5,L75.5
    Machine: Homag
    d: 30 mm
    l: 2.5 mm
    NL: 2.5 mm
    A: 40 mm
    GL: 75.5 mm
    DB: 63 mm
    TK: 90 mm
    Weight: 2.0 kg
    Stock: available from stock
    Stock: 1
    Request Price
  • 663093 Sawblade flange with HSK-F63
    HSK-F63,A50,d30,l2.5,L85.5
    Machine:
    d: 30 mm
    l: 2.5 mm
    NL: 2.5 mm
    A: 50 mm
    GL: 85.5 mm
    DB: 63 mm
    TK: 90 mm
    Weight: 2.2 kg
    Stock: available from stock
    Stock: 1
    Request Price
  • 663109 Sawblade flange with HSK-F63
    HSK-F63,A60,d30,l2.5,L95.5
    Machine: SCM
    d: 30 mm
    l: 2.5 mm
    NL: 2.5 mm
    A: 60 mm
    GL: 95.5 mm
    DB: 63 mm
    TK: 90 mm
    Weight: 2.5 kg
    Stock: available from stock
    Stock: 1
    Request Price

Sales unit consisting of HSK-flange with counterscrews as well as counterflange with cylindrical screws.
