    • Cutters with shank

    Spiral finishing router cutter, alternate twist, HW-solid, Z 2+2, for abrasive materials

    to Tool selection

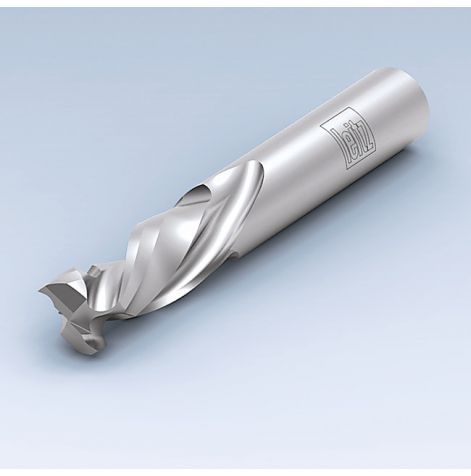

    main product photo
    Tungsten carbide
    Tungsten carbide
    Grooving, sizing
    Grooving, sizing
    Mechanical feed
    Mechanical feed
    Solid metal tool
    Solid metal tool

    Information

    Information
    Application:

    Router cutter for sizing, grooving and finish cutting. For high demands on finish quality and tear-free cut edges on both sides.
    Machine:

    Stationary routers with/without CNC control, machining centres, milling machines with spindles to mount shank tools.
    Workpiece material:

    Softwood and hardwood, chipboard and fibre materials (MDF, HDF etc.), uncoated, plastic coated, veneered etc., laminated veneer lumber (plywood, multiplex plywood etc.), duromers, plastomers, solid surface material (Corian, Varicor etc.), decorative laminates (HPL-compact laminate, Trespa etc.).
    Technical information:

    Ideally used after roughing cutters, finish cut allowance approx. 1-2 mm. Alternate twist for tear-free cut edges on both sides. Design for coated chipboard material and fibre material, glulam, abrasive materials and compound materials with aluminium top layer.
    Tool selection
    i
    Id D
    mm     		D
    in     		GL
    mm     		GL
    in     		NL
    mm     		NL
    in     		lpos.
    mm     		S
    mm     		S
    in     		ap min
    mm     		DRI
    		 Stock
    42536 Spiral finishing router cutter
    HW/D12/NL25/S12x40/GL70/Z2+2/RH
    D: 12 mm
    D: in
    GL: 70 mm
    GL: in
    NL: 25 mm
    NL: in
    lpos.: 12.0 mm
    S: 12x40 mm
    S: in
    ap min: 13 mm
    DRI: RH
    Stock: 1
    Stock: available from stock
    42537 Spiral finishing router cutter
    HW/D16/NL40/S16x50/GL100/Z2+2/RH
    D: 16 mm
    D: in
    GL: 100 mm
    GL: in
    NL: 40 mm
    NL: in
    lpos.: 14.0 mm
    S: 16x50 mm
    S: in
    ap min: 15 mm
    DRI: RH
    Stock: 1
    Stock: available from stock
    42538 Spiral finishing router cutter
    HW/D18/NL50/S18x50/GL100/Z2+2/RH
    D: 18 mm
    D: in
    GL: 100 mm
    GL: in
    NL: 50 mm
    NL: in
    lpos.: 19.0 mm
    S: 18x50 mm
    S: in
    ap min: 20 mm
    DRI: RH
    Stock: 1
    Stock: available from stock
    240516 Spiral finishing router cutter
    HW/D9,53/GL76,2/S9,53x40/Z2+2
    D: 9.53 mm
    D: 3/8" in
    GL: 76.2 mm
    GL: 3" in
    NL: 28.6 mm
    NL: 1 1/8" in
    lpos.: 6.0 mm
    S: 9,53x40 mm
    S: 3/8"x1 1/2" in
    ap min: 7 mm
    DRI: RH
    Stock: 1
    Stock: available from stock
    240517 Spiral finishing router cutter
    HW/D12,7/GL88,7/S12,7x40/Z2+2
    D: 12.7 mm
    D: 1/2" in
    GL: 88.7 mm
    GL: 3 1/2" in
    NL: 38.1 mm
    NL: 1 1/2" in
    lpos.: 12.0 mm
    S: 12,7x40 mm
    S: 1/2"x1 1/2" in
    ap min: 13 mm
    DRI: RH
    Stock: 1
    Stock: available from stock
    • 42536 Spiral finishing router cutter
      HW/D12/NL25/S12x40/GL70/Z2+2/RH
      D: 12 mm
      D: in
      GL: 70 mm
      GL: in
      NL: 25 mm
      NL: in
      lpos.: 12.0 mm
      S: 12x40 mm
      S: in
      ap min: 13 mm
      DRI: RH
      Stock: available from stock
      Stock: 1
      Request Price
    • 42537 Spiral finishing router cutter
      HW/D16/NL40/S16x50/GL100/Z2+2/RH
      D: 16 mm
      D: in
      GL: 100 mm
      GL: in
      NL: 40 mm
      NL: in
      lpos.: 14.0 mm
      S: 16x50 mm
      S: in
      ap min: 15 mm
      DRI: RH
      Stock: available from stock
      Stock: 1
      Request Price
    • 42538 Spiral finishing router cutter
      HW/D18/NL50/S18x50/GL100/Z2+2/RH
      D: 18 mm
      D: in
      GL: 100 mm
      GL: in
      NL: 50 mm
      NL: in
      lpos.: 19.0 mm
      S: 18x50 mm
      S: in
      ap min: 20 mm
      DRI: RH
      Stock: available from stock
      Stock: 1
      Request Price
    • 240516 Spiral finishing router cutter
      HW/D9,53/GL76,2/S9,53x40/Z2+2
      D: 9.53 mm
      D: 3/8" in
      GL: 76.2 mm
      GL: 3" in
      NL: 28.6 mm
      NL: 1 1/8" in
      lpos.: 6.0 mm
      S: 9,53x40 mm
      S: 3/8"x1 1/2" in
      ap min: 7 mm
      DRI: RH
      Stock: available from stock
      Stock: 1
      Request Price
    • 240517 Spiral finishing router cutter
      HW/D12,7/GL88,7/S12,7x40/Z2+2
      D: 12.7 mm
      D: 1/2" in
      GL: 88.7 mm
      GL: 3 1/2" in
      NL: 38.1 mm
      NL: 1 1/2" in
      lpos.: 12.0 mm
      S: 12,7x40 mm
      S: 1/2"x1 1/2" in
      ap min: 13 mm
      DRI: RH
      Stock: available from stock
      Stock: 1
      Request Price

    RPM:

    n = 16000 - 24000 min-1
