Profiling
Mechanical feed
Mechanical knife clamping, resharpenable and constant diameter
Light alloy body
Resharpenable cutting face
Information
| Application: | Flexible profiling of different profiles, suitable for panel production. |
|---|---|
| Machine: | Four-sided moulders and profile machines. |
| Workpiece material: | Softwood and hardwood, with grain. |
| Technical information: | Resharpenable, diameter and profile constant tooling system. Easy profile adjustment through knife change. No tool measurement required. To adapt ProFix F knives with 4.5 mm resharpening area and a profile depth of 25 mm maximum Lightweight aluminium tool body. Division of maximum cutting width to several knives possible. |
Tool selection
| Id |
D0 mm |
PT mm |
SB mm |
nmax min-1 |
BEM |
Z |
Stock |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

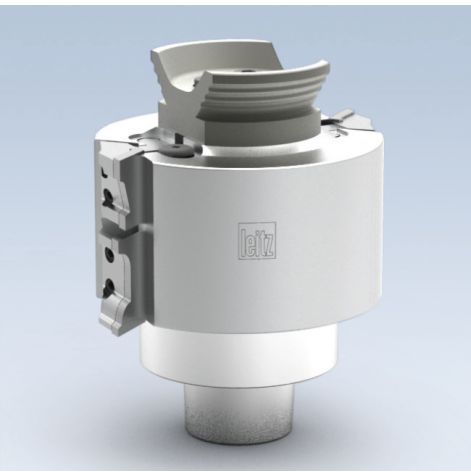

14046
ProFix tool body, Alu
125x70xHSK85WS, Z2 |
D0:
125
mm
|
PT:
25
mm
|
SB:
20
mm
|
nmax:
10000
min-1
|
BEM:
right/top
|
Z:
2
|
Stock:
2
Stock:
available at short notice
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
14048
ProFix tool body, Alu
125x70xHSK85WS, Z2 |
D0:
125
mm
|
PT:
25
mm
|
SB:
20
mm
|
nmax:
10000
min-1
|
BEM:
left/bottom
|
Z:
2
|
Stock:
2
Stock:
available at short notice
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
14045
ProFix tool body, Alu
125x90xHSK85WS, Z2 |
D0:
125
mm
|
PT:
25
mm
|
SB:
20
mm
|
nmax:
10000
min-1
|
BEM:
right/top
|
Z:
2
|
Stock:
2
Stock:
available at short notice
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
14047
ProFix tool body, Alu
125x90xHSK85WS, Z2 |
D0:
125
mm
|
PT:
25
mm
|
SB:
20
mm
|
nmax:
10000
min-1
|
BEM:
left/bottom
|
Z:
2
|
Stock:
2
Stock:
available at short notice
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
14046 ProFix tool body, Alu
125x70xHSK85WS, Z2D0: 125 mmPT: 25 mmSB: 20 mmnmax: 10000 min-1BEM: right/topZ: 2Stock: available at short noticeStock: 2Request Price -
14048 ProFix tool body, Alu
125x70xHSK85WS, Z2D0: 125 mmPT: 25 mmSB: 20 mmnmax: 10000 min-1BEM: left/bottomZ: 2Stock: available at short noticeStock: 2Request Price -
14045 ProFix tool body, Alu
125x90xHSK85WS, Z2D0: 125 mmPT: 25 mmSB: 20 mmnmax: 10000 min-1BEM: right/topZ: 2Stock: available at short noticeStock: 2Request Price -
14047 ProFix tool body, Alu
125x90xHSK85WS, Z2D0: 125 mmPT: 25 mmSB: 20 mmnmax: 10000 min-1BEM: left/bottomZ: 2Stock: available at short noticeStock: 2Request Price
Explanation of abbreviations
D0
Zero diameter
PT
Profile depth
SB
Cutting width
nmax
Maximum RPM
BEM
Note
Z
Number of teeth
Stock
Stock availability
