Cutters with shank
| Application: | For panel raising profiles for framed doors, ceilings, wall coverings etc. |
|---|---|
| Machine: | Stationary routers with/without CNC control, milling machines with spindles to mount shank tools. |
| Workpiece material: | Softwood and hardwood. |
| Technical information: | Panel edge jointing by mounting an additional jointing cutterhead |
| Id |
Tool Type |
ABM mm |
Z |
nmax min-1 |
Stock |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
125661
Profile cutterhead ProfilCut Q
132x43x20 |
Tool Type:
Cutterhead
|
ABM:
132x43x20
mm
|
Z:
2
|
nmax:
13000
min-1
|
Stock:
Stock:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
7925
Cover plate
46x9.5x20 |
Tool Type:
Cover plate
|
ABM:
46x9.5x20
mm
|
Z:
|
nmax:
min-1
|
Stock:
Stock:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

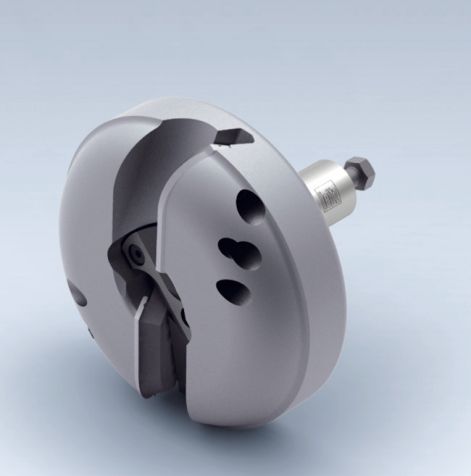

426209
Profile cutterset ProfilCut Q
HW,1-part |
Tool Type:
Cutterhead mounted on arbor
|
ABM:
1-part
mm
|
Z:
|
nmax:
min-1
|
Stock:
Stock:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unless stated otherwise, tools are right hand rotation.
Cutter arbor see section Clamping Systems.
| Id | BEZ | ABM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5081
Turnblade knife
HW-05:12x12x1.5 |
BEZ: Turnblade knife | ABM: HW-05:12x12x1.5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
619343
ProfilCut Q knife
MC:60x21,5x2 |
BEZ: ProfilCut Q knife | ABM: MC:60x21,5x2 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Id | BEZ | ABM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
630192
Clamping wedge profiled
57x32x7,25 |
BEZ: Clamping wedge profiled | ABM: 57x32x7,25 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
7446
Clamping screw w. disc, Torx® 20
M5x18.5 |
BEZ: Clamping screw w. disc, Torx® 20 | ABM: M5x18.5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
117503
Torx® key
Torx® 20 |
BEZ: Torx® key | ABM: Torx® 20 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
6225
Oval head screw Torx® 15
M4x6 |
BEZ: Oval head screw Torx® 15 | ABM: M4x6 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
117507
Torx® key
Torx® 15 |
BEZ: Torx® key | ABM: Torx® 15 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
