    • Cutters with shank

    T-groove disc cutter, Z 4

    to Tool selection

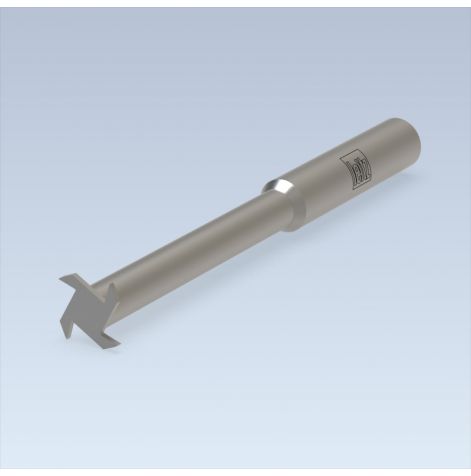

    main product photo
    Tungsten carbide
    Tungsten carbide
    Grooving, sizing
    Grooving, sizing
    Bevel 45
    Bevel 45
    Mechanical feed
    Mechanical feed
    Solid metal tool
    Solid metal tool

    Information

    Information
    Application:

    Router for slotting, grooving and undercutting
    Machine:

    Routing machines with/without CNC conrol. CNC machining centres, special milling machines with cutting spindles to adapt shank tools.
    Workpiece material:

    Aluminium, aluminium extruded profiles, thermoplastics
    Technical information:

    Long version for increased cross sections. When machining aluminum, carbide tools should be operated using cooling lubricants (emulsion or minimum quantity lubrication MQL).
    to product website
    Tool selection
    i
    Id D
    mm     		GL
    mm     		AL
    mm     		S
    mm     		Z
    		 SB
    mm     		Twist
    		 DRI
    745064 Disc cutter Z4
    HW/D12/GL80/S8/Z4/RL
    D: 12 mm
    GL: 80 mm
    AL: 45 mm
    S: 8 mm
    Z: 4
    SB: 0.8 mm
    Twist: RD
    DRI: RH
    745065 Disc cutter Z4
    HW/D18/GL80/S8/Z4/RL
    D: 18 mm
    GL: 80 mm
    AL: 45 mm
    S: 8 mm
    Z: 4
    SB: 0.8 mm
    Twist: RD
    DRI: RH
    745066 Disc cutter Z4
    HW/D20/GL80/S8/Z4/RL
    D: 20 mm
    GL: 80 mm
    AL: 45 mm
    S: 8 mm
    Z: 4
    SB: 0.8 mm
    Twist: RD
    DRI: RH
    • 745064 Disc cutter Z4
      HW/D12/GL80/S8/Z4/RL
      D: 12 mm
      GL: 80 mm
      AL: 45 mm
      S: 8 mm
      Z: 4
      SB: 0.8 mm
      Twist: RD
      DRI: RH
      Request Price
    • 745065 Disc cutter Z4
      HW/D18/GL80/S8/Z4/RL
      D: 18 mm
      GL: 80 mm
      AL: 45 mm
      S: 8 mm
      Z: 4
      SB: 0.8 mm
      Twist: RD
      DRI: RH
      Request Price
    • 745066 Disc cutter Z4
      HW/D20/GL80/S8/Z4/RL
      D: 20 mm
      GL: 80 mm
      AL: 45 mm
      S: 8 mm
      Z: 4
      SB: 0.8 mm
      Twist: RD
      DRI: RH
      Request Price

    RPM:

    n = 8000 - 10000 min-1 vf = 1,0 m min-1
