    • Cutters with shank

    Grooving cutter, serrated, Z 2

    to Tool selection

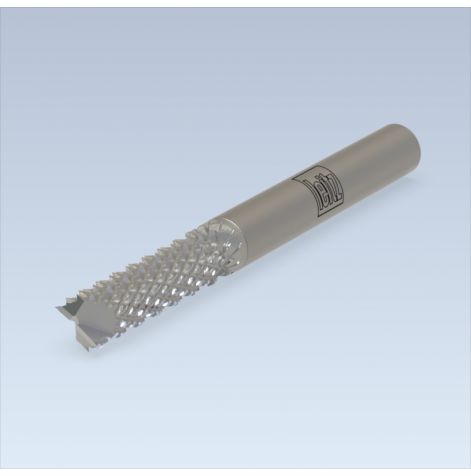

    main product photo
    Tungsten carbide
    Tungsten carbide

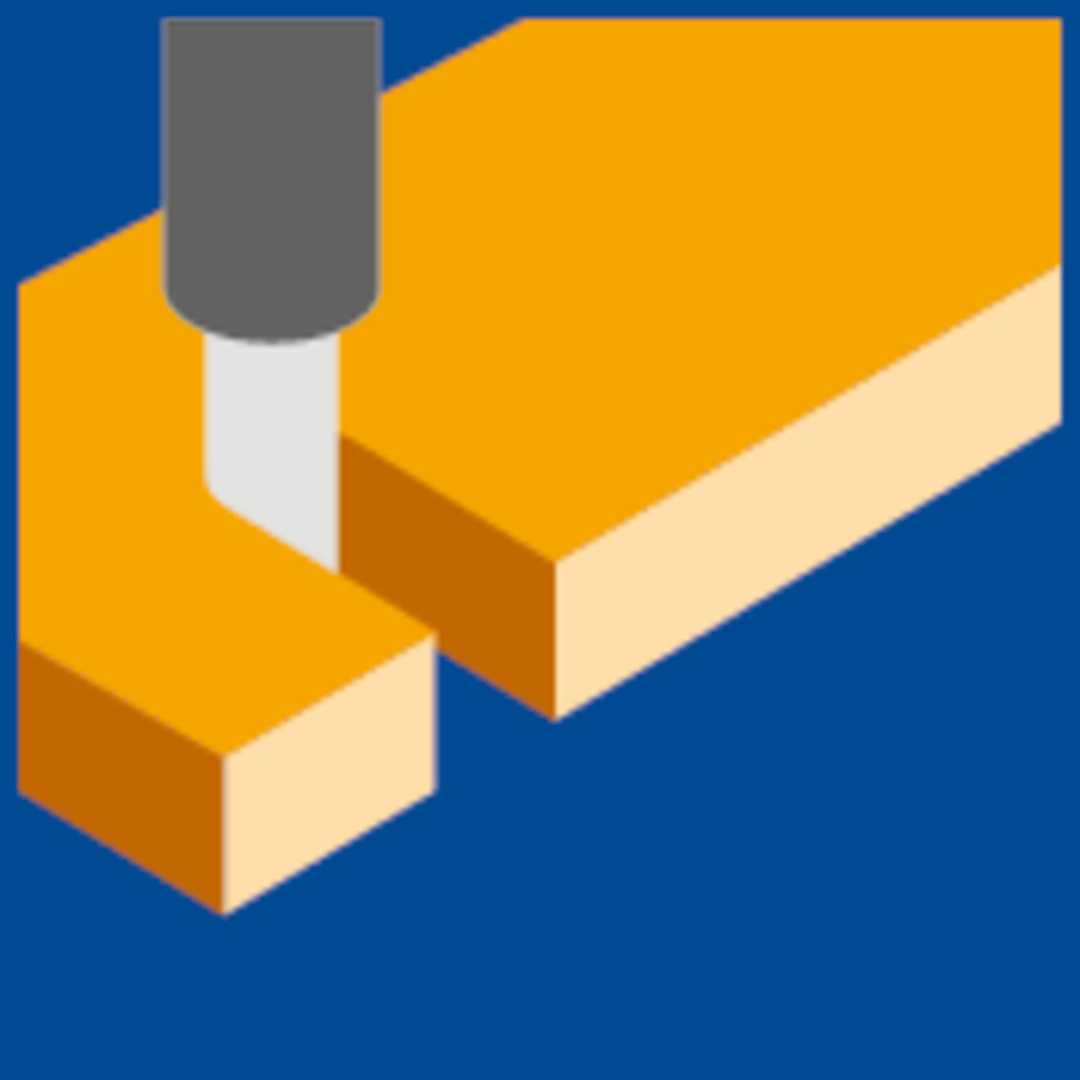

    Grooving, sizing
    Grooving, sizing

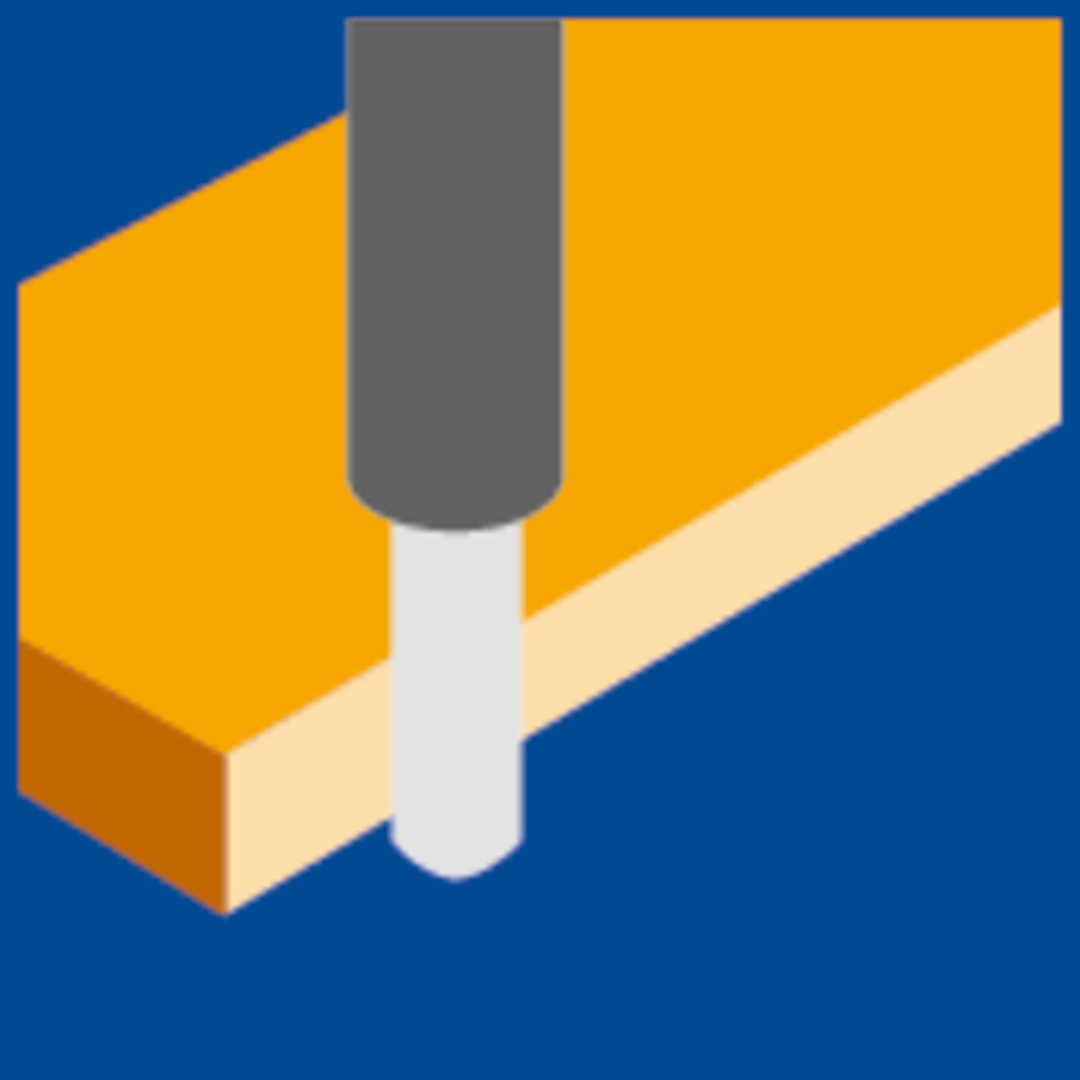

    Jointing
    Jointing

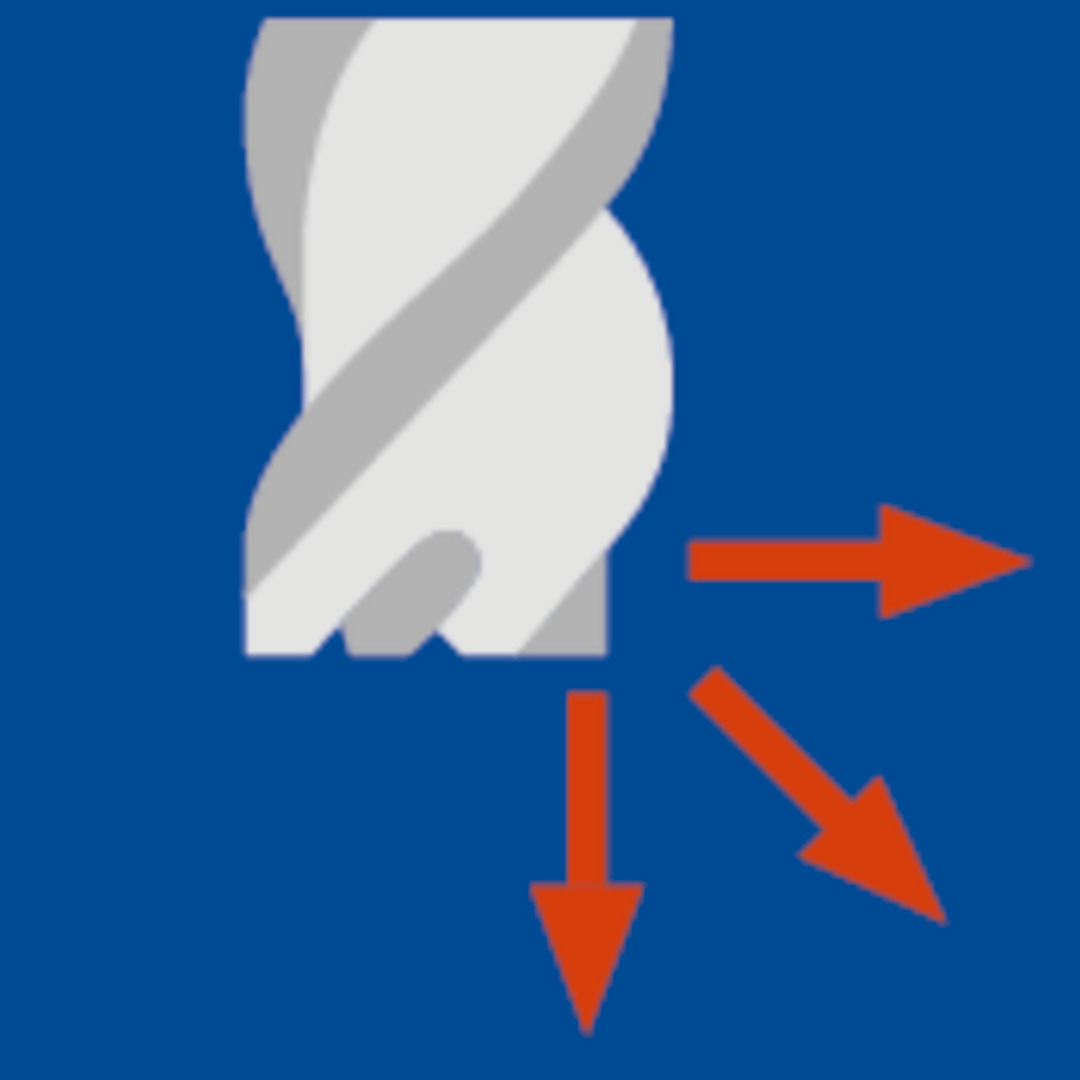

    Bearbeitungsrichtung Torus
    Bearbeitungsrichtung Torus
    Mechanical feed
    Mechanical feed
    Solid metal tool
    Solid metal tool

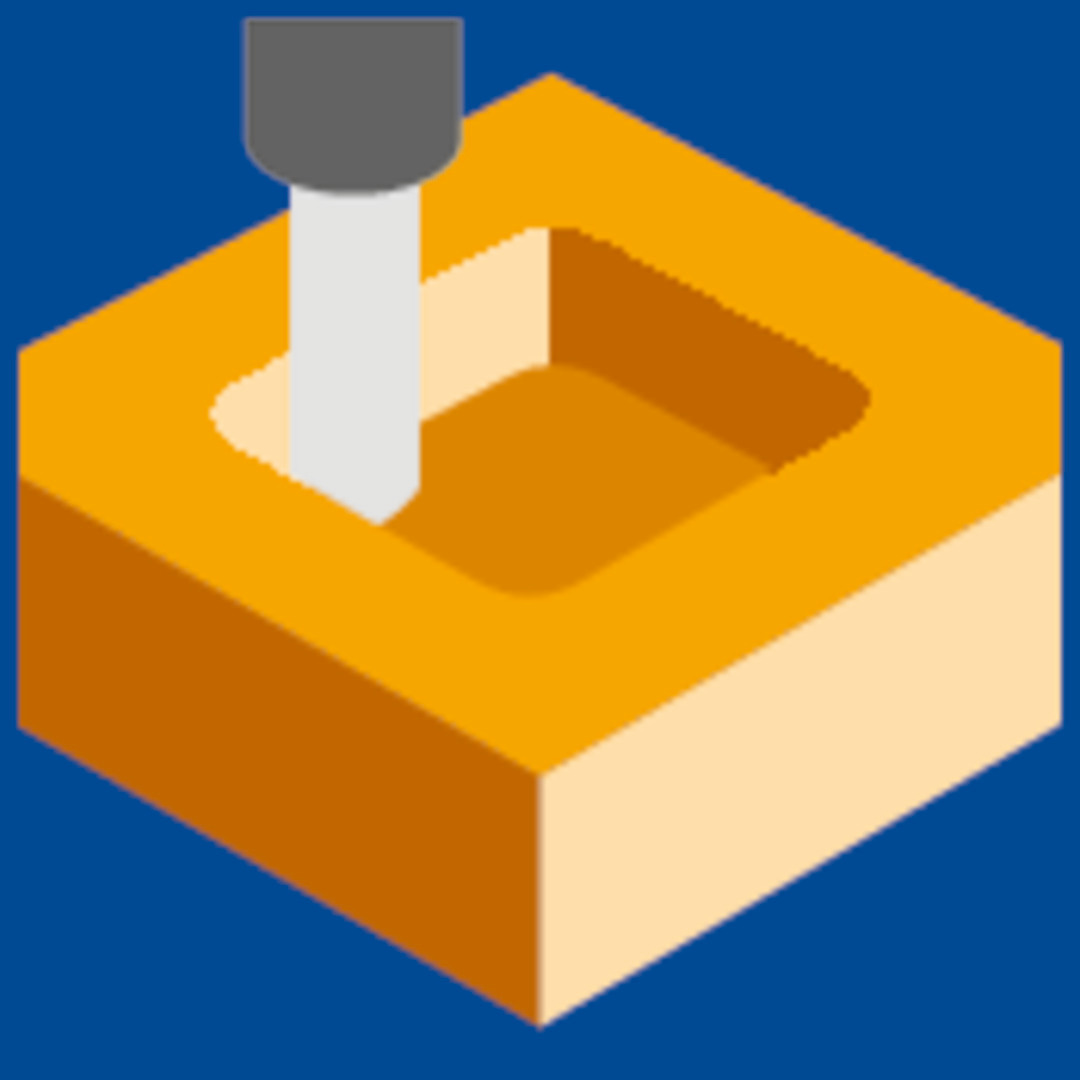

    Taschenfräsen
    Taschenfräsen

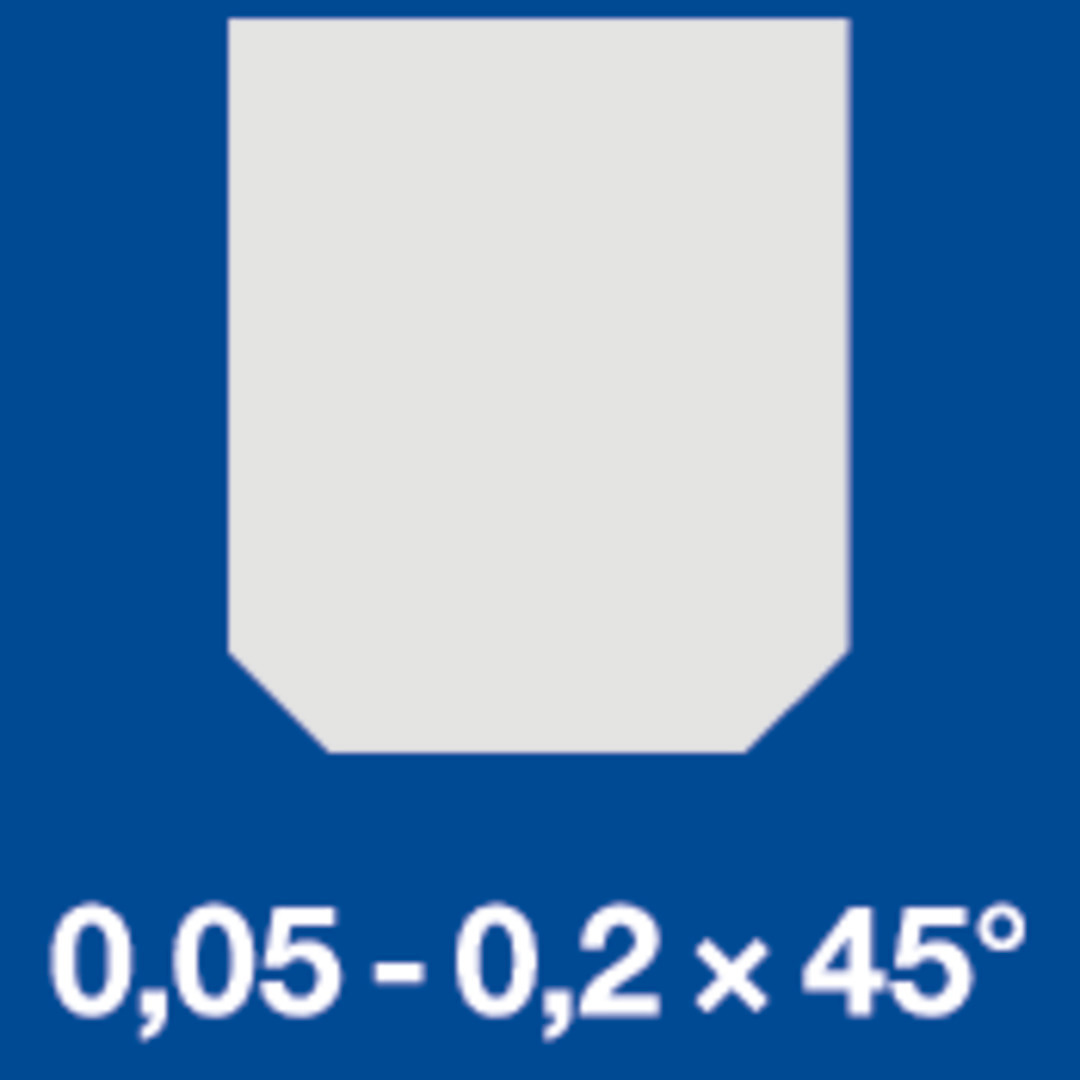

    Fase 45
    Fase 45

    Information

    Information
    Application:

    Routers for sizing, grooving and pocket milling.
    Machine:

    Routing machines with/without CNC conrol. CNC machining centres, special milling machines with cutting spindles to adapt shank tools.
    Workpiece material:

    Glass and carbon fiber materials or other fiber reinforced materials, PU hard foams.
    Technical information:

    Multi-teeth geometry for universal application, minimisation of the force influences on the components, this avoids delamination and breakouts.
    to product website
    Tool selection
    i
    Id D
    mm     		GL
    mm     		NL
    mm     		S
    mm
    745026 Serrated grooving cutter
    HW/D2/GL60/S6
    D: 2 mm
    GL: 60 mm
    NL: 6 mm
    S: 6 mm
    745022 Serrated grooving cutter
    HW/D3/GL40/S6
    D: 3 mm
    GL: 40 mm
    NL: 12 mm
    S: 6 mm
    745023 Serrated grooving cutter
    HW/D4/GL50/S6
    D: 4 mm
    GL: 50 mm
    NL: 16 mm
    S: 6 mm
    745024 Serrated grooving cutter
    HW/D6/GL60/S6
    D: 6 mm
    GL: 60 mm
    NL: 19 mm
    S: 6 mm
    745025 Serrated grooving cutter
    HW/D8/GL63/S8
    D: 8 mm
    GL: 63 mm
    NL: 25 mm
    S: 8 mm
    • 745026 Serrated grooving cutter
      HW/D2/GL60/S6
      D: 2 mm
      GL: 60 mm
      NL: 6 mm
      S: 6 mm
      Request Price
    • 745022 Serrated grooving cutter
      HW/D3/GL40/S6
      D: 3 mm
      GL: 40 mm
      NL: 12 mm
      S: 6 mm
      Request Price
    • 745023 Serrated grooving cutter
      HW/D4/GL50/S6
      D: 4 mm
      GL: 50 mm
      NL: 16 mm
      S: 6 mm
      Request Price
    • 745024 Serrated grooving cutter
      HW/D6/GL60/S6
      D: 6 mm
      GL: 60 mm
      NL: 19 mm
      S: 6 mm
      Request Price
    • 745025 Serrated grooving cutter
      HW/D8/GL63/S8
      D: 8 mm
      GL: 63 mm
      NL: 25 mm
      S: 8 mm
      Request Price

    RPM:

    n = 10000 - 16000 min-1 Vf = 1,5 - 2,0 m min-1
