    • Cutters with shank

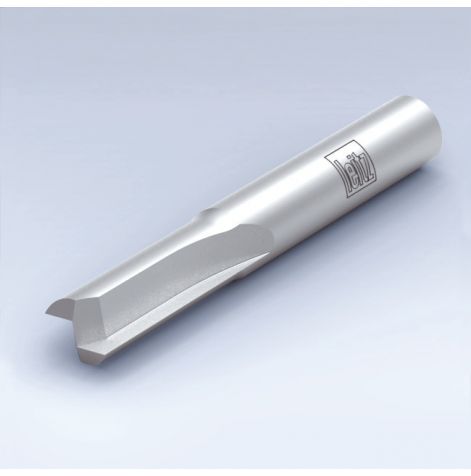

    Grooving cutter, straight cut - Z 2, long design

    to Tool selection
    main product photo
    Tungsten carbide
    Tungsten carbide
    Grooving, sizing
    Grooving, sizing
    Manual feed
    Manual feed
    Solid metal tool
    Solid metal tool

    Information

    Information
    Application: Router cutter for sizing and grooving.
    Machine: Stationary routers with/without CNC control, machining centres, milling machines with spindles to mount shank tools, portable routers.
    Workpiece material:

    Softwood and hardwood, chipboard and fibre materials (MDF, HDF etc.), uncoated, plastic coated, veneered etc., laminated veneer lumber (plywood, multiplex plywood etc.), duromers, plastomers, solid surface material (Corian, Varicor etc.), decorative laminates (HPL-compact laminate, Trespa etc.), non-ferrous metals (aluminium, copper etc.), PVC profile extrusions.
    Technical information:

    Straight cut. End-ground for plunging. Large resharpening area. Short design for increased stability and reduced vibration. Long design for increased cutting depth (recommended in several steps).
    Tool selection
    i
    Id D
    mm     		GL
    mm     		NL
    mm     		S
    mm     		DRI
    		 Stock
    41964 Grooving router cutter Z2
    HW/D3/NL12/S6x30/GL60/Z2/RH
    D: 3 mm
    GL: 60 mm
    NL: 12 mm
    S: 6x30 mm
    DRI: RH
    Stock: 1
    Stock: available from stock
    41965 Grooving router cutter Z2
    HW/D4/NL12/S6x30/GL60/Z2/RH
    D: 4 mm
    GL: 60 mm
    NL: 12 mm
    S: 6x40 mm
    DRI: RH
    Stock: 1
    Stock: available from stock
    41966 Grooving router cutter Z2
    HW/D5/NL18/S6x40/GL80/Z2/RH
    D: 5 mm
    GL: 80 mm
    NL: 18 mm
    S: 6x40 mm
    DRI: RH
    Stock: 1
    Stock: available from stock
    • 41964 Grooving router cutter Z2
      HW/D3/NL12/S6x30/GL60/Z2/RH
      D: 3 mm
      GL: 60 mm
      NL: 12 mm
      S: 6x30 mm
      DRI: RH
      Stock: available from stock
      Stock: 1
      Request Price
    • 41965 Grooving router cutter Z2
      HW/D4/NL12/S6x30/GL60/Z2/RH
      D: 4 mm
      GL: 60 mm
      NL: 12 mm
      S: 6x40 mm
      DRI: RH
      Stock: available from stock
      Stock: 1
      Request Price
    • 41966 Grooving router cutter Z2
      HW/D5/NL18/S6x40/GL80/Z2/RH
      D: 5 mm
      GL: 80 mm
      NL: 18 mm
      S: 6x40 mm
      DRI: RH
      Stock: available from stock
      Stock: 1
      Request Price

    RPM: nmax = 24000 min-1
