    • Cutters with shank

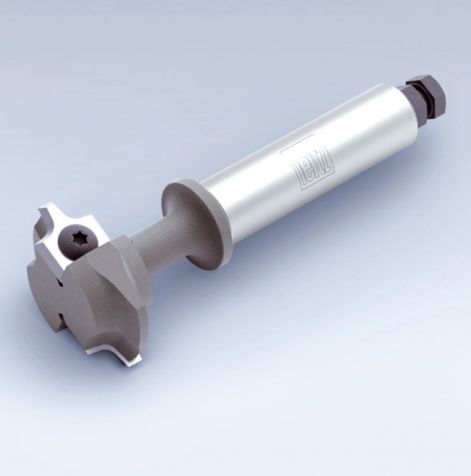

    Profile cutterhead - radii, bevel profile

    to Tool selection
    main product photo
    Tungsten carbide
    Tungsten carbide
    Profiling
    Profiling
    Mechanical feed
    Mechanical feed
    Interchangeable knives
    Interchangeable knives

    Information

    Information
    Application:

    For rounding workpieces with different radii or 45° bevelling.
    Machine: Stationary routers with/without CNC control, milling machines with spindles to mount shank tools.
    Workpiece material: Softwood and hardwood, chipboard and fibre materials (MDF, HDF etc.), uncoated, plastic coated, veneered etc., laminated veneer lumber (plywood, multiplex plywood etc.), duromers, plastomers, solid surface material (Corian, Varicor etc.).
    Technical information:

    Multi-purpose use on top or bottom of workpiece up to HD approx. 35 mm. Suitable for cutting narrow internal radii on workpieces. One tool body can be used for radii from 2 to 5 mm and 45° bevels.
    Tool selection
    i
    Id Tool Type
    		 D
    mm     		S
    mm     		Z
    		 DRI
    		 Stock
    43105 Profile cutterhead
    Tool body and HW-knives R2; R3; R4; R5
    Tool Type: 1 tool body + 2 pcs. R2, R3, R4, R5 knives each in wooden box
    D: 40 mm
    S: 16x60 mm
    Z: 2
    DRI: RH
    Stock: 1
    Stock: available from stock
    • 43105 Profile cutterhead
      Tool body and HW-knives R2; R3; R4; R5
      Tool Type: 1 tool body + 2 pcs. R2, R3, R4, R5 knives each in wooden box
      D: 40 mm
      S: 16x60 mm
      Z: 2
      DRI: RH
      Stock: available from stock
      Stock: 1
      Request Price

    Spare knives:
    Id BEZ ABM
    5132 Exchange knife
    HW:16x17.5x2,R2
    		BEZ: Exchange knife ABM: HW:16x17.5x2,R2
    Request Price
    5133 Exchange knife
    HW:16x17.5x2,R3
    		BEZ: Exchange knife ABM: HW:16x17.5x2,R3
    Request Price
    5134 Exchange knife
    HW:16x17.5x2,R4
    		BEZ: Exchange knife ABM: HW:16x17.5x2,R4
    Request Price
    5135 Exchange knife
    HW:16x17.5x2,R5
    		BEZ: Exchange knife ABM: HW:16x17.5x2,R5
    Request Price
    9525 Exchange knife
    HW:16x17.5x2,45°
    		BEZ: Exchange knife ABM: HW:16x17.5x2,45°
    Request Price
    • 5132 Exchange knife
      HW:16x17.5x2,R2
      BEZ: Exchange knife
      ABM: HW:16x17.5x2,R2
      Request Price
    • 5133 Exchange knife
      HW:16x17.5x2,R3
      BEZ: Exchange knife
      ABM: HW:16x17.5x2,R3
      Request Price
    • 5134 Exchange knife
      HW:16x17.5x2,R4
      BEZ: Exchange knife
      ABM: HW:16x17.5x2,R4
      Request Price
    • 5135 Exchange knife
      HW:16x17.5x2,R5
      BEZ: Exchange knife
      ABM: HW:16x17.5x2,R5
      Request Price
    • 9525 Exchange knife
      HW:16x17.5x2,45°
      BEZ: Exchange knife
      ABM: HW:16x17.5x2,45°
      Request Price

    Spare parts:
    Id BEZ ABM
    6225 Oval head screw Torx® 15
    M4x6
    		BEZ: Oval head screw Torx® 15 ABM: M4x6
    Request Price
    5457 Torx® key
    Torx® 15
    		BEZ: Torx® key ABM: Torx® 15
    Request Price
    • 6225 Oval head screw Torx® 15
      M4x6
      BEZ: Oval head screw Torx® 15
      ABM: M4x6
      Request Price
    • 5457 Torx® key
      Torx® 15
      BEZ: Torx® key
      ABM: Torx® 15
      Request Price
