Lexicon
High-speed steel

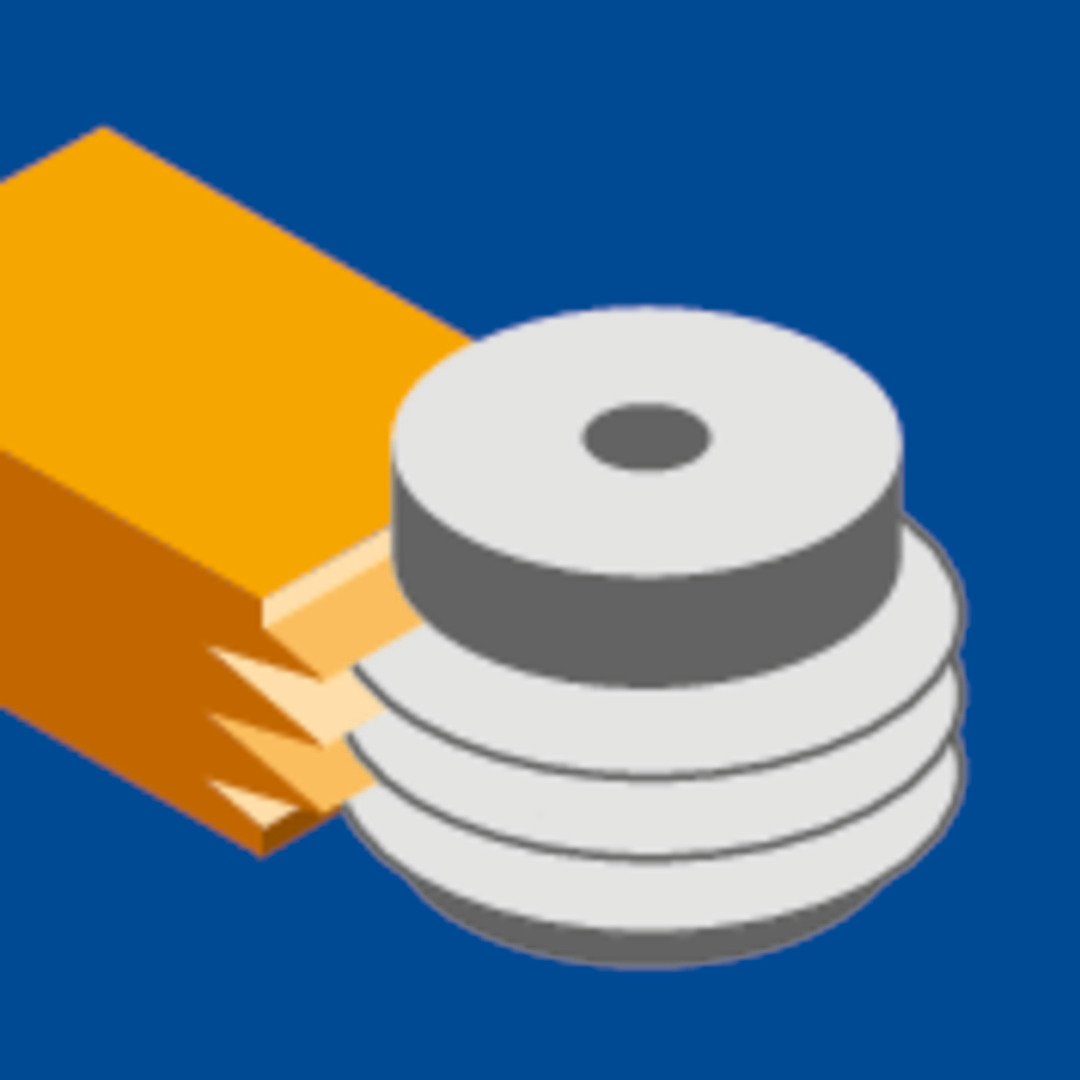

Profiling joints
Mechanical feed
Tipped tool
Resharpenable cutting face
Information
| Application: | For self-locking longitudinal joints. See section introduction for additional information. |
|---|---|
| Machine: | Finger joint machines with/without cut-off saw, continuous machines. |
| Workpiece material: | Softwood, across grain; limited suitability for hardwood. |
| Technical information: | Reduced risk of breakage from individually brazed finger cutting edges. Cutting material HS. Resharpening area 12 mm. |
Downloads
Product information
Tool selection
| Id |
D mm |
SB mm |
ND mm |
BO mm |
Z |
ZA PCS |
QAL |
ZL mm |
Stock |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21694

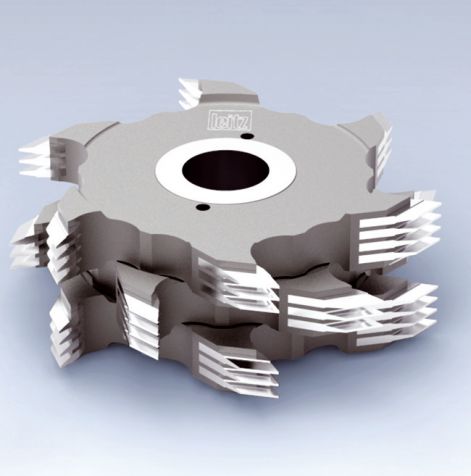

Minifinger joint cutter
HS:170x26.6/34.2x50 Z4 MINI |
D:
170
mm
|
SB:
28.6
mm
|
ND:
26,6
mm
|
BO:
50
mm
|
Z:
2/2
|
ZA:
7
PCS
|
QAL:
HS
|
ZL:
15/15
mm
|
Stock:
1
Stock:
available from stock
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
21696
Minifinger joint cutter
HS:170x26.6/34.2x50 Z4 MINI |
D:
170
mm
|
SB:
28.6
mm
|
ND:
26,6
mm
|
BO:
50
mm
|
Z:
2/2
|
ZA:
7
PCS
|
QAL:
HS
|
ZL:
15/16,5
mm
|
Stock:
1
Stock:
available from stock
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
21695
Minifinger joint cutter
HS:260x26.6/34.2x50,Z6,ZL15 |
D:
260
mm
|
SB:
28.6
mm
|
ND:
26,6
mm
|
BO:
50
mm
|
Z:
3/3
|
ZA:
7
PCS
|
QAL:
HS
|
ZL:
15/15
mm
|
Stock:
2
Stock:
available at short notice
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
21697
Minifinger joint cutter
HS:260x26.6/34.2x50 Z6 MINI |
D:
260
mm
|
SB:
28.6
mm
|
ND:
26,6
mm
|
BO:
50
mm
|
Z:
3/3
|
ZA:
7
PCS
|
QAL:
HS
|
ZL:
15/16,5
mm
|
Stock:
1
Stock:
available from stock
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
120420
Minifinger joint cutter
HS:260x28.6x80,Z8,Z4/4 |
D:
260
mm
|
SB:
28.6
mm
|
ND:
26,6
mm
|
BO:
80
mm
|
Z:
4/4
|
ZA:
7
PCS
|
QAL:
HS
|
ZL:
15/15
mm
|
Stock:
Stock:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
120422
Minifinger joint cutter
HS:260x28.6x80,Z8,Z4/4 |
D:
260
mm
|
SB:
28.6
mm
|
ND:
26,6
mm
|
BO:
80
mm
|
Z:
4/4
|
ZA:
7
PCS
|
QAL:
HS
|
ZL:
15/16,5
mm
|
Stock:
Stock:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
21694 Minifinger joint cutter
HS:170x26.6/34.2x50 Z4 MINID: 170 mmSB: 28.6 mmND: 26,6 mmBO: 50 mmZ: 2/2ZA: 7 PCSQAL: HSZL: 15/15 mmStock: available from stockStock: 1Request Price -
21696 Minifinger joint cutter
HS:170x26.6/34.2x50 Z4 MINID: 170 mmSB: 28.6 mmND: 26,6 mmBO: 50 mmZ: 2/2ZA: 7 PCSQAL: HSZL: 15/16,5 mmStock: available from stockStock: 1Request Price -
21695 Minifinger joint cutter
HS:260x26.6/34.2x50,Z6,ZL15D: 260 mmSB: 28.6 mmND: 26,6 mmBO: 50 mmZ: 3/3ZA: 7 PCSQAL: HSZL: 15/15 mmStock: available at short noticeStock: 2Request Price -
21697 Minifinger joint cutter
HS:260x26.6/34.2x50 Z6 MINID: 260 mmSB: 28.6 mmND: 26,6 mmBO: 50 mmZ: 3/3ZA: 7 PCSQAL: HSZL: 15/16,5 mmStock: available from stockStock: 1Request Price -
120420 Minifinger joint cutter
HS:260x28.6x80,Z8,Z4/4D: 260 mmSB: 28.6 mmND: 26,6 mmBO: 80 mmZ: 4/4ZA: 7 PCSQAL: HSZL: 15/15 mmStock:Stock:Request Price -
120422 Minifinger joint cutter
HS:260x28.6x80,Z8,Z4/4D: 260 mmSB: 28.6 mmND: 26,6 mmBO: 80 mmZ: 4/4ZA: 7 PCSQAL: HSZL: 15/16,5 mmStock:Stock:Request Price
Explanation of abbreviations
D
Diameter
SB
Cutting width
ND
Thickness of hub
BO
Bore diameter / interface
Z
Number of teeth
ZA
Number of fingers
QAL
Cutting material
ZL
Finger length
Stock
Stock availability
