    Cutters with shank

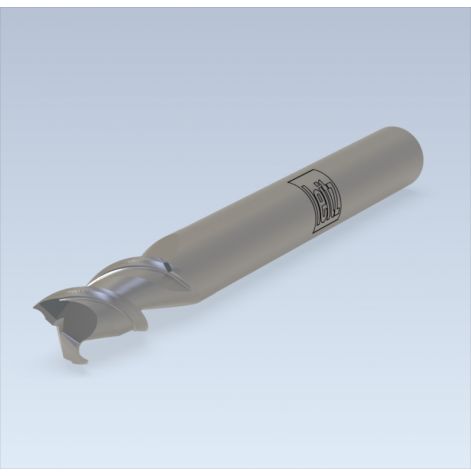

    Spiral finishing router cutter, HW-solid, Z 2, polished chip flute

    to Tool selection
    Tungsten carbide
    Tungsten carbide
    Pocket milling
    Pocket milling
    Jointing
    Jointing
    Machining direction torus
    Machining direction torus
    Mechanical feed
    Mechanical feed
    Solid metal tool
    Solid metal tool
    Slotting, splitting
    Slotting, splitting

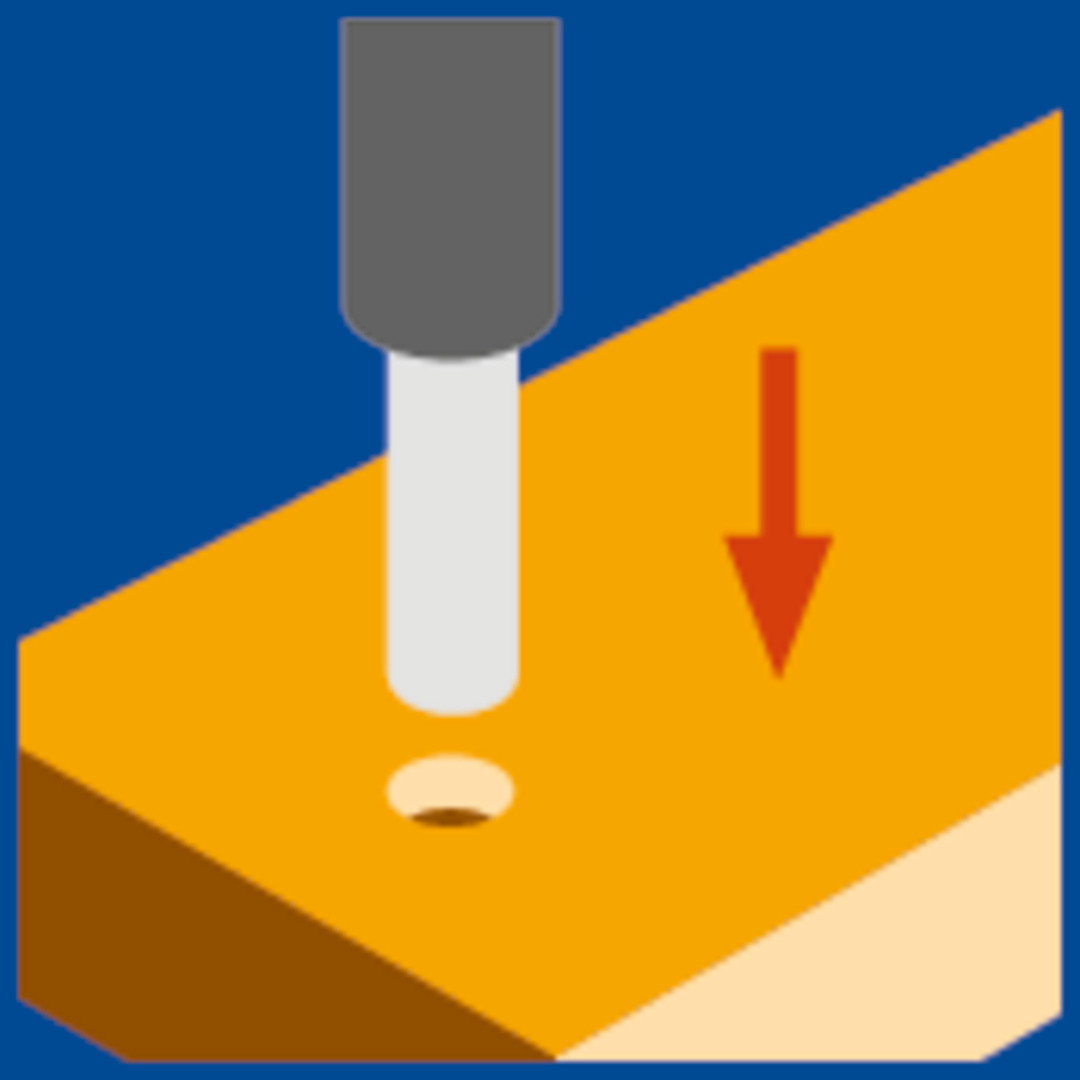

    Axial plunging
    Axial plunging

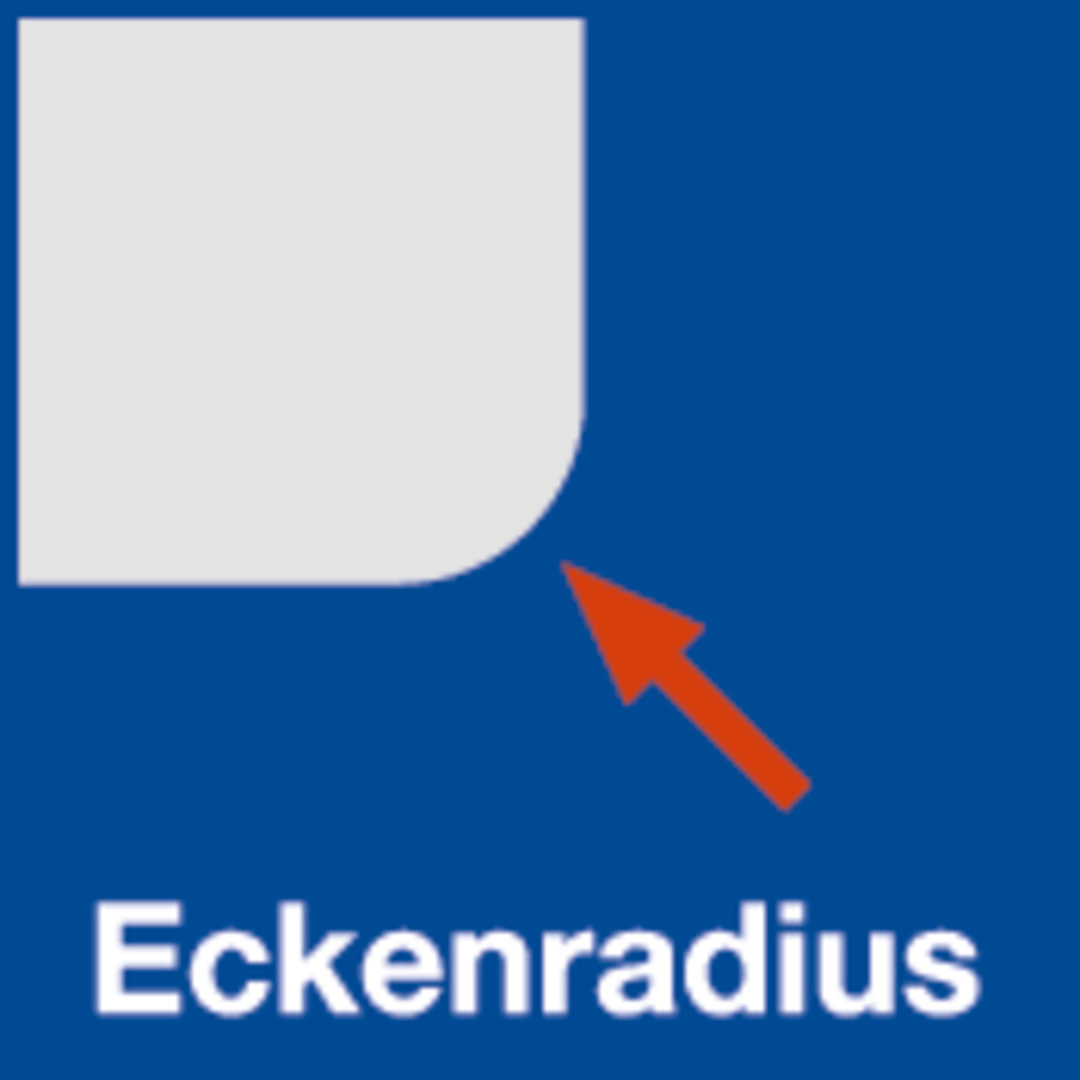

    Corner radius
    Corner radius

    Information

    Information
    Application:

    Router for sizing, grooving, pocket milling, slotting, splitting and axial plunging.
    Machine:

    Routing machines with/without CNC conrol. CNC machining centres, special milling machines with cutting spindles to adapt shank tools.
    Workpiece material:

    Aluminium, aluminium extruded profiles, aluminium composite panels.
    Technical information:

    Special cutting geometry for high surface qualities and burr-free cutting edges. Short machining times with long tool life. When machining aluminum, carbide tools should be operated using cooling lubricants (emulsion or minimum quantity lubrication MQL).
    to product website
    Tool selection
    i
    Id D
    mm     		GL
    mm     		NL
    mm     		S
    mm     		Z
    		 ER
    mm     		Twist
    		 DRI
    745060 Spiral finishing router Z2
    HW/D2/GL50/S6/Z2/RL
    D: 2 mm
    GL: 50 mm
    NL: 6 mm
    S: 6 mm
    Z: 2
    ER: 0.1 mm
    Twist: RD
    DRI: RH
    745061 Spiral finishing router Z2
    HW/D3/GL50/S6/Z2/RL
    D: 4 mm
    GL: 50 mm
    NL: 10 mm
    S: 6 mm
    Z: 2
    ER: 0.1 mm
    Twist: RD
    DRI: RH
    745062 Spiral finishing router Z2
    HW/D6/GL60/S6/Z2/RL
    D: 6 mm
    GL: 60 mm
    NL: 20 mm
    S: 6 mm
    Z: 2
    ER: 0.1 mm
    Twist: RD
    DRI: RH
    745063 Spiral finishing router Z2
    HW/D8/GL75/S8/Z2/RL
    D: 8 mm
    GL: 75 mm
    NL: 25 mm
    S: 8 mm
    Z: 2
    ER: 0.1 mm
    Twist: RD
    DRI: RH
    • 745060 Spiral finishing router Z2
      HW/D2/GL50/S6/Z2/RL
      D: 2 mm
      GL: 50 mm
      NL: 6 mm
      S: 6 mm
      Z: 2
      ER: 0.1 mm
      Twist: RD
      DRI: RH
      Request Price
    • 745061 Spiral finishing router Z2
      HW/D3/GL50/S6/Z2/RL
      D: 4 mm
      GL: 50 mm
      NL: 10 mm
      S: 6 mm
      Z: 2
      ER: 0.1 mm
      Twist: RD
      DRI: RH
      Request Price
    • 745062 Spiral finishing router Z2
      HW/D6/GL60/S6/Z2/RL
      D: 6 mm
      GL: 60 mm
      NL: 20 mm
      S: 6 mm
      Z: 2
      ER: 0.1 mm
      Twist: RD
      DRI: RH
      Request Price
    • 745063 Spiral finishing router Z2
      HW/D8/GL75/S8/Z2/RL
      D: 8 mm
      GL: 75 mm
      NL: 25 mm
      S: 8 mm
      Z: 2
      ER: 0.1 mm
      Twist: RD
      DRI: RH
      Request Price

    RPM:

    n = 16000 - 20000 min-1 vf = 2,0 - 3,0 m min-1
