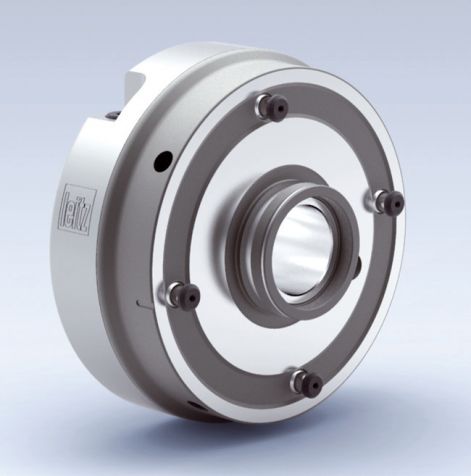

Hydro quick clamping element type 160, for HF-spindle 40 with hexagon, for hoggers

to Tool selection
Spindle with anti-twist hexagon
Spindle with anti-twist hexagon
Hydro clamping system - closed
Hydro clamping system - closed
Hydro clamping
Hydro clamping
Quick clamping system
Quick clamping system

Information

Information
Application:

Quick clamping sleeve for tools and hoggers on high precision spindle D = 40 mm with hexagon safety device against twisting.

Machine:

Double-end tenoners, edgebanding machines etc.

Technical information:

Hardened steel tool body, with mechanical quick clamping mechanism without compressed air. Tool is mounted directly on the quick clamping system without intermediate flange, closed hydro clamping system with maintenance free pressure piston mechanism, suitable for right hand and left hand rotation. RPM nmax = 9000 min-1. Tools must have four bayonet holes on 130 mm pitch.
Attention: Comply with maximum admissible speed for the mounted tools!

Tool selection
Id d
mm
BO
mm
NL
mm
L
mm
GL
mm
ND
mm
DB
mm
TK
mm
Clamping bolts
PCS
Stock
150100 Hydro quick clamping element
160/170x40-87.7
d: 60 mm
BO: 40 mm
NL: 17.7 mm
L: 17.7 mm
GL: 95.7 mm
ND: 80 mm
DB: 170 mm
TK: 130 mm
Clamping bolts: 4 PCS
Stock: 1
Stock: available from stock
  • 150100 Hydro quick clamping element
    160/170x40-87.7
    d: 60 mm
    BO: 40 mm
    NL: 17.7 mm
    L: 17.7 mm
    GL: 95.7 mm
    ND: 80 mm
    DB: 170 mm
    TK: 130 mm
    Clamping bolts: 4 PCS
    Stock: available from stock
    Stock: 1
    Request Price
