| Application: | Arbor for single tools with bore or tool sets with bore. |
|---|---|
| Technical information: | Steep taper design as per DIN ISO 7388, without grooves and notches. Outside dimension A = 63 mm for longer tool length in the machine. Safety device against tool twisting by screw or pin. Arbors are fine balanced. If conical spring washers with safety device against twisting are used, slots are required in the arbor. For suitable mounting device VN 799 0, see section Knives and Spare Parts. |
Tool selection
| Id |
Type |
d mm |
l mm |
NL mm |
GL mm |
DB mm |
TK mm |
Weight kg |
Stock |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
42829

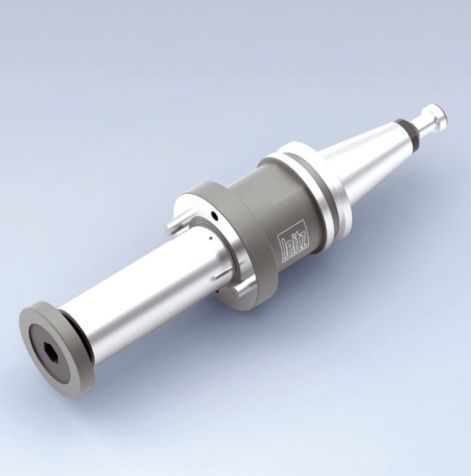

Cutting arbor SK40
SK40/A63/d30/l80/L211.3 |
Type:
E
|
d:
30
mm
|
l:
80
mm
|
NL:
85
mm
|
GL:
249.5
mm
|
DB:
63.55
mm
|
TK:
48
mm
|
Weight:
2.2
kg
|
Stock:
2
Stock:
available at short notice
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
42829 Cutting arbor SK40
SK40/A63/d30/l80/L211.3Type: Ed: 30 mml: 80 mmNL: 85 mmGL: 249.5 mmDB: 63.55 mmTK: 48 mmWeight: 2.2 kgStock: available at short noticeStock: 2Request Price
Sales unit consists of arbor with pull stud, clamping screw and conical spring washer (flat design), without spacers.
Explanation of abbreviations
Type
Type
d
Clamping diameter
l
Clamping length
NL
Cutting length
GL
Total length
DB
Diameter of shoulder
TK
Reference diameter
Weight
Weight
Stock
Stock availability
Spare parts:
| Id | BEZ | ABM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6768
Washer with safety device against twisting, M10
20/35x13x10,5 |
BEZ: Washer with safety device against twisting, M10 | ABM: 20/35x13x10,5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
6769
Washer with safety device against twisting, M16
30/45x15x16,5 |
BEZ: Washer with safety device against twisting, M16 | ABM: 30/45x15x16,5 |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
81601
Locking nut with Balluff chip
SK40 Balluff |
BEZ: Locking nut with Balluff chip | ABM: SK40 Balluff |
Request Price
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
6768 Washer with safety device against twisting, M10
20/35x13x10,5BEZ: Washer with safety device against twisting, M10ABM: 20/35x13x10,5Request Price -
6769 Washer with safety device against twisting, M16
30/45x15x16,5BEZ: Washer with safety device against twisting, M16ABM: 30/45x15x16,5Request Price -
81601 Locking nut with Balluff chip
SK40 BalluffBEZ: Locking nut with Balluff chipABM: SK40 BalluffRequest Price
Suitable spacers, see section Knives and Spare Parts.
